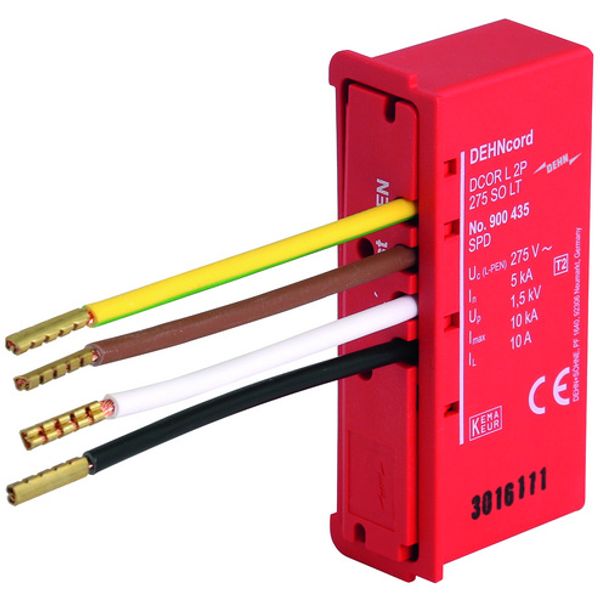

Surge arrester Type 2 DEHNcord 2-pole f. electr. installation systems
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
94,79 €
EAN: 4013364292963
MPN: 900435
Package: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | Surge arrester Type 2 DEHNcord 2-pole f. electr. installation systems |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | RO |
| Harmonized System Code | 8536 3030 00 |
| Voltage protection level | 1.5 kV |
| Nominal discharge surge current (8/20) | 5 kA |
| Nominal voltage AC | 230 V |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 4013364292963, 4013364292963 |
Other Technical data
| Mounting method | Direct mounting |
| Number of conductors (without earthing) | 2 |
| Construction size | Other |
| Max. continuous voltage AC | 275 V |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Max. discharge surge current (8/20) | 10 kA |
| Short-circuit breaking capacity (Isccr) | 6 kA |
| Max. overcurrent protection device, parallel connection (fuse) | 16 A |
Downloads
Description
Two-pole DEHNcord L type 2 surge arrester according to EN 61643-11 with a compact design for use in the fuse boxes of LED mast lights with disconnection of the load circuit in the event of a fault and protection of the control phase. For installation in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
