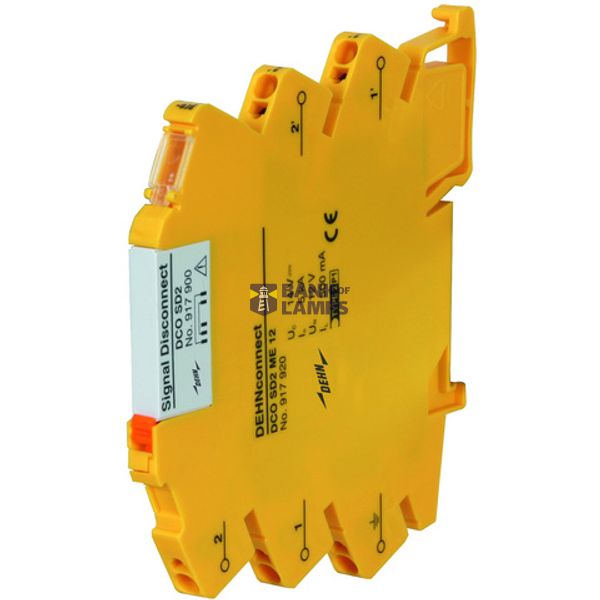

Surge arrester terminal block 2-pole DEHNconnect SD2
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Surge arrester terminal block 2-pole DEHNconnect SD2 |
| Brand | Dehn |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| ETIM | EC000943 |
| Max. continuous voltage AC | 9.5 V |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal load current | 0.5 A |
| Voltage protection level core/core | 36 V |
| Max. continuous voltage DC | 14 V |
| Degree of protection (IP) | Other |
| Nominal voltage DC | 12 V |
Packing details
| Packing level 1 | 4013364150560, 4013364150560 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| Connection 1 | Push-in terminal |
| Lightning impulse current (10/350 µs) | 1 kA |
| Number of conductors (without earthing) | 2 |
| Limiting frequency | 2.5 MHz |
| Explosion-tested version | Yes |
| Voltage protection level core/earth | 19 V |
| Signalling at the device | None |

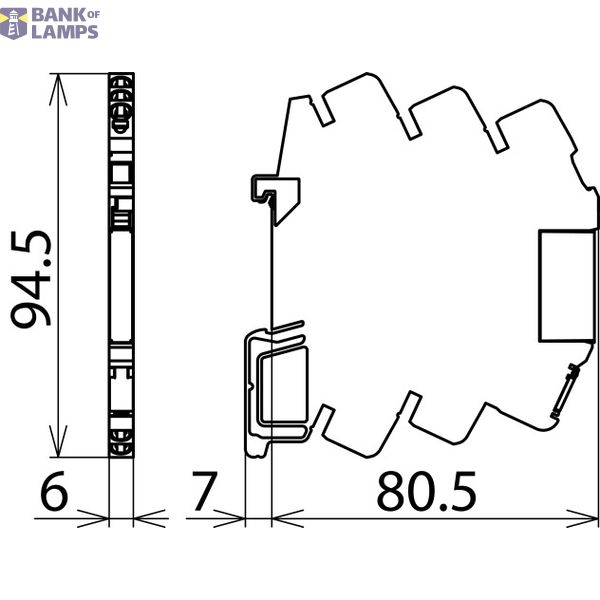

| Assembly width | 6 mm |
| Signal disconnection | Yes |
| Earthing via | DIN rail (top hat rail) |
Downloads
Description

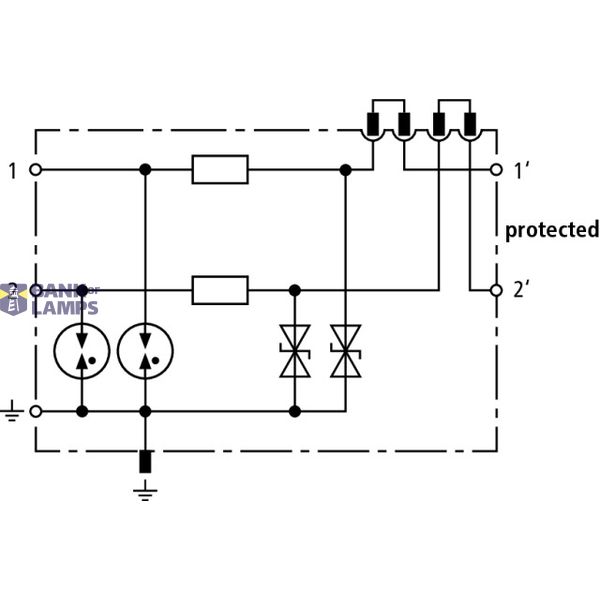

DEHNconnect SD2 terminal block with integrated surge protection. Energy-coordinated two-stage arrester for protecting two single lines sharing a common reference potential as well as unbalanced interfaces. Signal circuits can be disconnected by removing the plug-in part.
