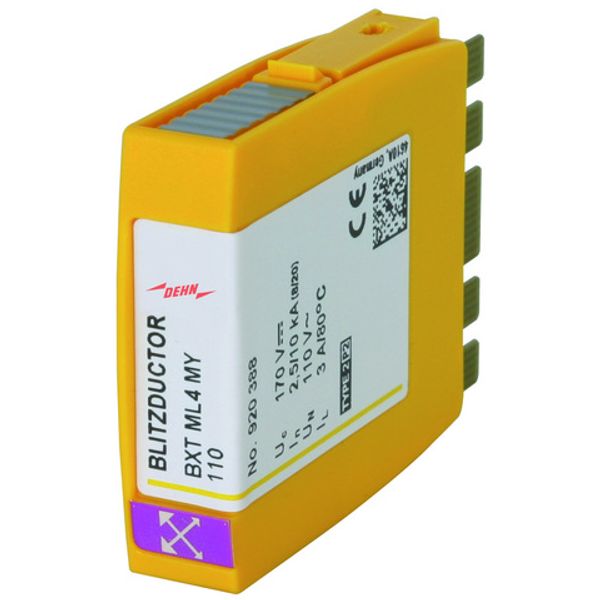

Surge arrester module BLITZDUCTOR XT with Y circuit
Order only
Price (excl. VAT):
232,16 €
EAN: 4013364137370
MPN: 920388
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Surge arrester module BLITZDUCTOR XT with Y circuit |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal load current | 3 A |
| Voltage protection level core/core | 300 V |
| Degree of protection (IP) | IP20 |
| Nominal voltage DC | 110 V |
Packing details
| Packing level 1 | 4013364137370, 4013364137370 |
Other Technical data
| Mounting method | On basic element |
| Connection 1 | Screw terminal |
| Number of conductors (without earthing) | 4 |
| Limiting frequency | 4.5 MHz |
| Voltage protection level core/earth | 700 V |
| Pro-active thermo-control | Yes |
| Assembly width | 12 mm |
| Earthing via | Other |
Downloads
Description
Space-saving surge arrester module with LifeCheck feature for protecting four lines of stranded signal interfaces. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.
