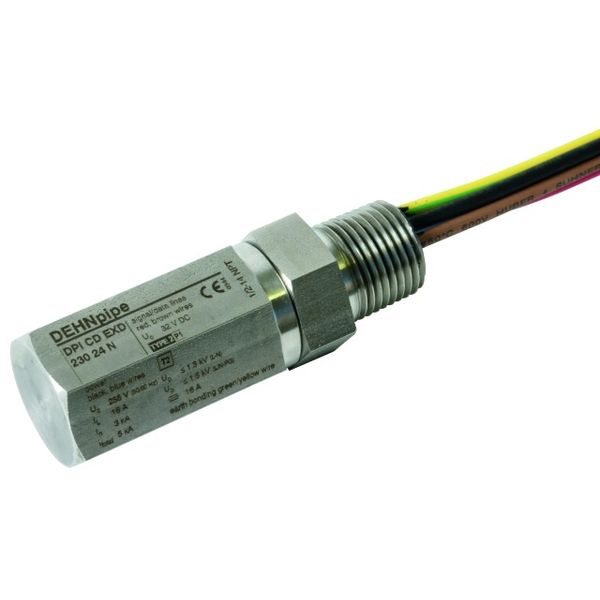

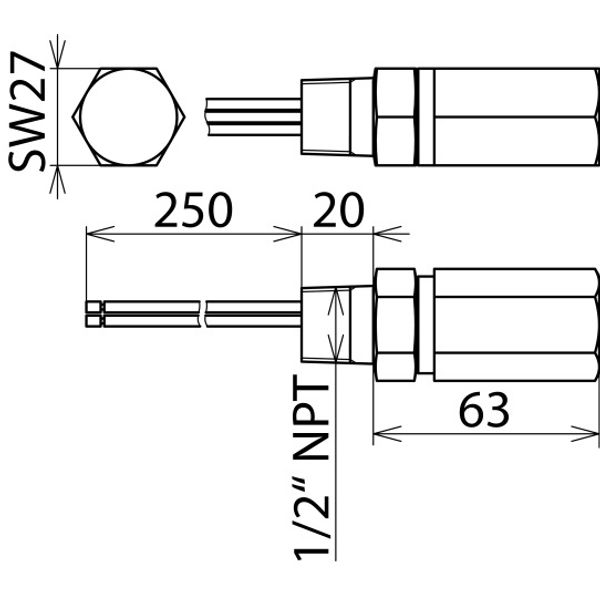

Surge Arrester pipe Ex (d) with 1/2-14 NPT male thread, Uc 32V DC, Uc 22.6V AC, In 10kA
Order only
EAN: 4013364127425
MPN: 929970
Package: 1
Price (excl. VAT)
266,33 €
per unit
MOQ: 1
EDT to our warehouse: 1-4 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Surge arrester DEHNpipe Ex (d) with 1/2 -14 NPT male thread |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| ETIM | EC000943 |
| Max. continuous voltage AC | 22.6 V |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal load current | 0.55 A |
| Voltage protection level core/core | 50 V |
| Max. continuous voltage DC | 32 V |
| Degree of protection (IP) | IP67 |
| Nominal voltage DC | 24 V |
Packing details
| Packing level 1 | 4013364127425, 4013364127425 |
Other Technical data
| Mounting method | Other |
| Connection 1 | Connection cable |
| Lightning impulse current (10/350 µs) | 1 kA |
| Number of conductors (without earthing) | 4 |
| Explosion-tested version | Yes |
| Voltage protection level core/earth | 850 V |
| Earthing via | Separate conductor |
Downloads
Description

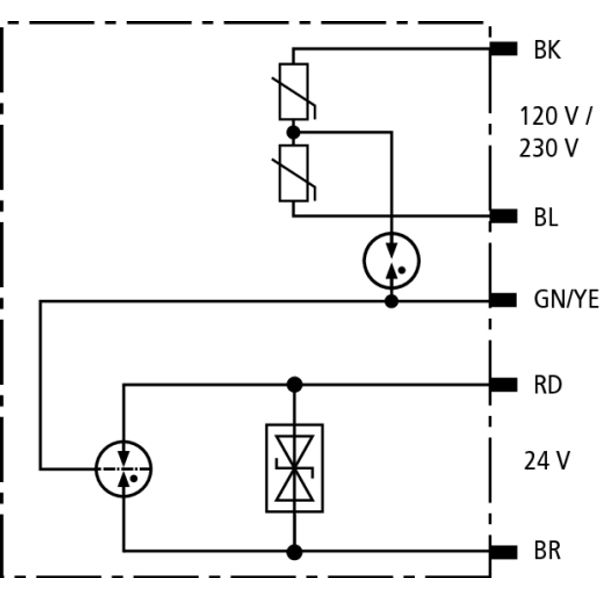

Flameproof surge arrester for the data and power side for protecting 120 / 230 V power supply systems and 24 V data interfaces of field devices in potentially explosive areas (zones 1 and 2). Additional safety due to distinctive Y circuit for 120 / 230 V power supply systems. II 2 G Ex d IIC T5/T6 version universally applicable in hazardous zones 1 and 2.
