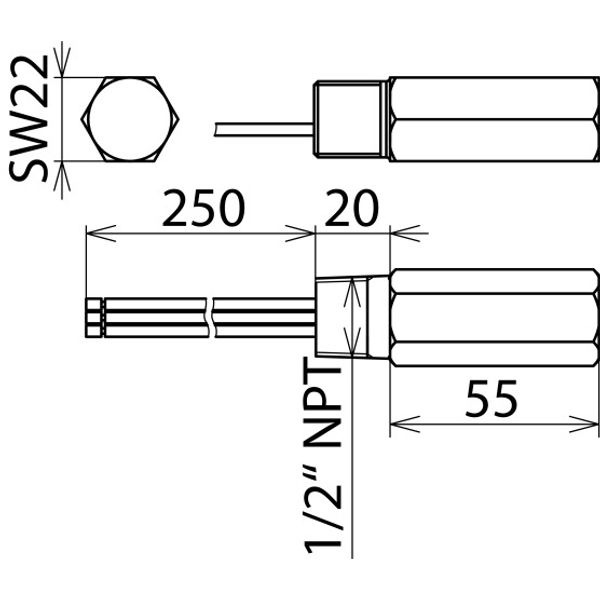

Surge arrester DEHNpipe Ex (d) with 1/2 -14 NPT male thread
Order only
Price (excl. VAT):
167,67 €
EAN: 4013364101814
MPN: 929964
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Surge arrester DEHNpipe Ex (d) with 1/2 -14 NPT male thread |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | DE |
| Harmonized System Code | 8536 3010 00 |
| Max. continuous voltage AC | 22.6 V |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal load current | 0.55 A |
| Voltage protection level core/core | 50 V |
| Max. continuous voltage DC | 32 V |
| Degree of protection (IP) | IP67 |
| Nominal voltage DC | 24 V |
Packing details
| Packing level 1 | 4013364101814, 4013364101814 |
Other Technical data
| Mounting method | Other |
| Connection 1 | Connection cable |
| Lightning impulse current (10/350 µs) | 1 kA |
| Number of conductors (without earthing) | 2 |
| Limiting frequency | 67 MHz |
| Explosion-tested version | Yes |
| Voltage protection level core/earth | 1200 V |
| Earthing via | Separate conductor |
Downloads
Description

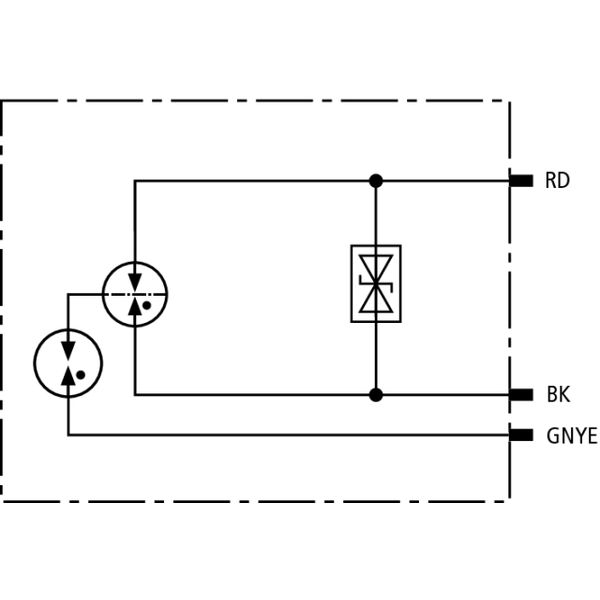

Flameproof surge arrester with a low-capacitance protective circuit for protecting measuring circuits and bus systems in potentially explosive atmospheres. Insulation strength > 500 V to earth.
