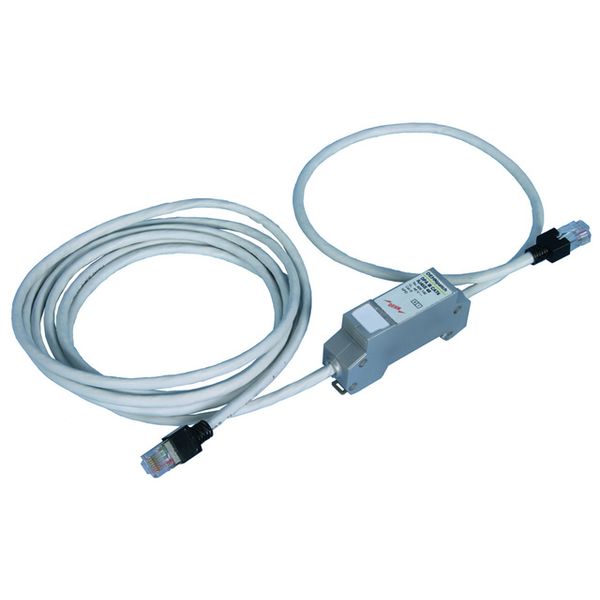

Surge arrester DEHNpatch with patch cable and Stewart plug

Name: Surge arrester DEHNpatch with patch cable and Stewart plug
Brand: Dehn
Price: 148.340 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

148,34 €

This price is valid until 24.12.25

EAN: 4013364102170

MPN: 929100

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Surge arrester DEHNpatch with patch cable and Stewart plug
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin	RO
Harmonized System Code	8536 3010 00
Max. continuous voltage AC	34 V
Nominal discharge surge current (8/20)	10 kA
Nominal load current	1 A
Voltage protection level core/core	145 V
Max. continuous voltage DC	48 V
Degree of protection (IP)	IP20
Nominal voltage DC	48 V

Packing details

Packing level 1

4013364102170, 4013364102170

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
Connection 1	RJ45
Number of conductors (without earthing)	8
Limiting frequency	250 MHz
Voltage protection level core/earth	500 V
Assembly width	19 mm
Earthing via	DIN rail (top hat rail)

Downloads

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Universal arrester for Industrial Ethernet, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems according to Cat. 6 and class EA up to 500 MHz. Fully shielded type for DIN rail mounting.
