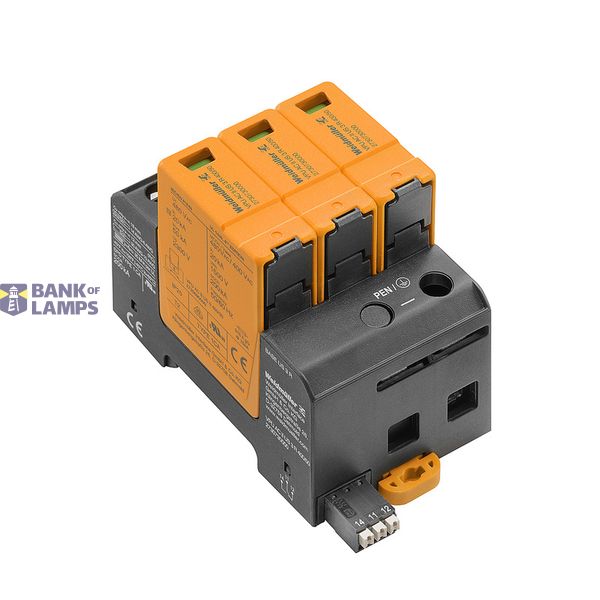

Surge arrester AC (Type 2), Mains voltage: , Low voltage network: , Nu

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4099987856027

MPN: 3174800000

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Surge arrester AC (Type 2), Mains voltage: , Low voltage network: , Nu
Brand	Weidmüller
Categories	Surge Protection Devices (SPD)
Country of origin*	SI
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3090 00
ETIM	EC000941
Voltage protection level	2.5 kV
Nominal voltage AC	480 V
Degree of protection (IP)	IP20
System configuration DC	No
System configuration IT	No
System configuration TN	No
System configuration TN-C-S	No

Packing details

Packing level 1

4099987856027, 4099987856027

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	Yes
Number of conductors (without earthing)	3
Construction size	3 modular spacing
Max. continuous voltage AC	550 V
Category type 2	Yes
Signalling at the device	Optic
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	35 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²
System configuration TN-C	No
System configuration TN-S	No
System configuration TT	No
Max. discharge surge current (8/20)	50 kA
Short-circuit breaking capacity (Isccr)	25 kA
Integrated short-circuit protection	Yes
Leakage-current free	No

Description

The device is a Type II surge protection and is also tested as Type III device. It can be installed in the sub distribution board and also can protect the following end devices against surge voltages caused by switch operations or indirect lightning. The portfolio offers a wide range of applications with different nominal voltages, suitability for various types of main voltages and worldwide usage in high-elevation regions and long warranty. All devices can be installed in various applications.
