RF Receiver Surface-Mounting, IP66, with 2 Channels
Order only
EAN: 5413736128859
MPN: 05-336
Package: 1
Price (excl. VAT)
187,74 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Surface-mounting RF receiver, IP66 with 2 channels |
| Brand | Niko |
| Categories |
Switches
Remote Controls & RF & IR Receivers |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 2010 00 |
| ETIM | EC000436 |
| Mounting method | Other |
| Suitable for pulse button | Yes |
| Suitable for dimmer | No |
| Type of fastening | Other |
Packing details
| Packing level 1 | 5413736128859 |
Other Technical data
| Colour | White |
| Halogen free | Yes |
| Surface protection | Untreated |
| Suitable for switch | No |
| Suitable for roller shutter switch | Yes |
| Material | Plastic |
| Rolling code system | No |
| Number of commands | 4 |
| Radio frequency | 868 MHz |
| In housing | Yes |
| In tube base housing | No |
| Printed circuit board/module | No |
| Push button mode | Yes |
| Switching mode | Yes |
| With manual radio transmitter | No |
| With radio coding device | No |
| With radio controlled push button | No |
| Suitable for venetian-/roller shutter switch | Yes |
| Suitable for venetian shutter switch | Yes |
| Transparent | No |
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
Downloads
Description

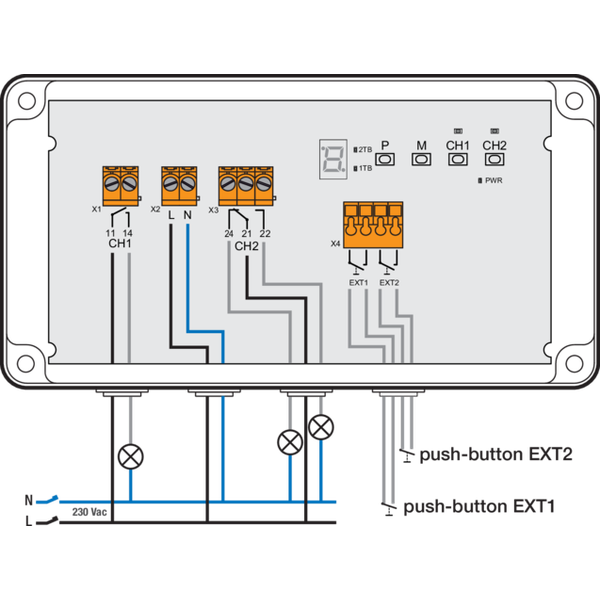

This surface-mounting receiver is protected against dust and powerful water jets (IP66). You control it wirelessly or with push buttons. It has 2 10A/ 230V switch contacts (two-way and 1-pole contacts) and 2 push-button inputs. You can choose from 5 modes for the on/off functions. These can be independently set for each output. You set the operating time to between 0 and 3 seconds and the switch-off time between 0 and 120 minutes. Do you use the 2-channel receiver for the control of roller shutters or a ventilator? Then you have the following specific function settings: • opening, closing or stopping the roller shutters • setting the speed of the ventilator. Will you use the receiver for the control of a motor? Then, the device uses both contacts for one motor. You may only use it in a 1-phase distribution network. The contact may not be used for circuits with safety extra-low voltage (SELV).
