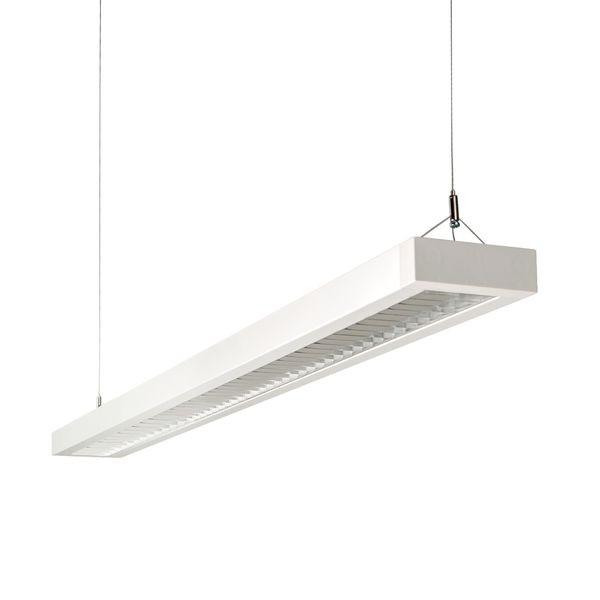

Surface mnt./suspen. luminaire PRI12L 25W/830 AAG2
Order only
Price (excl. VAT):
Price by request
EAN: 6438100412463
MPN: PRI12LAAG2/830
Package: 1
Pallet: 50
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Surface mnt./suspen. luminaire PRI12L 25W/830 AAG2 |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Surface mounting lamps |
| Width | 140 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 1207 mm |
| Height/depth | 50 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK00 |
| Degree of protection (IP) | IP20 |
| Beam angle | Wide beam 41-80° |
| Max. system power | 25 W |
| Rated luminous flux according to IEC 62722-2-1 | 3170 lm |
| Luminaire efficacy | 127 lm/W |
Packing details
| Packing level 1 | 6438100412463, 6438100412463 |
| Packing level 2 | 6438100412463 |
Other Technical data
| Protection class | I |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | Yes |
| Type of grid | High-gloss |
| Type of control gear | LED operating device current-controlled |
| With light sensor | Yes |
| Suitable for suspended mounting | Yes |
| Number of poles | 3 |
| Housing material | Steel |
| Suitable for light line configuration | Yes |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Without cover |
| With light source | Yes |
| Suitable for wall mounting | No |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Reflector |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Colour temperature adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.95 |
