Supporting Tube D 50mm L 4700mm GRP/Al w. air-termin. rod D 22/16/10mm

Order only

Price (excl. VAT):

604,56 €

This price is valid until 24.12.26

EAN: 4013364152526

MPN: 105333

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Supporting Tube D 50mm L 4700mm GRP/Al w. air-termin. rod D 22/16/10mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of accessory/spare part	Support pipe
Material	Aluminium/plastic

Packing details

Packing level 1

4013364152526, 4013364152526

Downloads

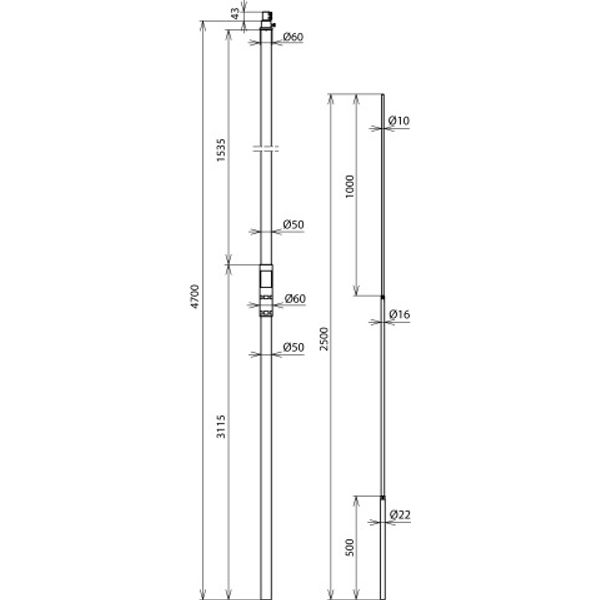

Product data sheet Dimensioned drawing

Description

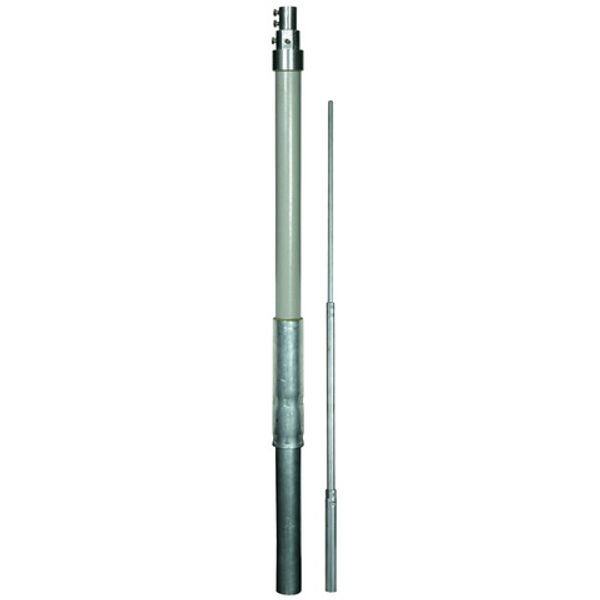

Supporting tube GRP/Al with internal sealing end and EB spring element for the HVI long Conductor to be used for the installation of a separated (insulated) air-termination system with air-termination rod. For keeping the separation distance to electrically conductive parts according to IEC/EN 62305-3. Tube D50 mm made of glass-fibre reinforced plastic (GRP), UV-stabilised, light grey colour, material factor km = 0.7. One-piece, combined with air-termination rod (D22/16/10 mm, length 2500 mm) made of Al.
