Supportin tube D 50mm L 3500mm GRP/StSt w. air-term. rod D 22/16/10mm

Order only

Price (excl. VAT):

1 002,45 €

This price is valid until 24.12.25

EAN: 4013364152397

MPN: 105321

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Supportin tube D 50mm L 3500mm GRP/StSt w. air-term. rod D 22/16/10mm
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of accessory/spare part	Support pipe
Material	Plastic/stainless steel V2A

Packing details

Packing level 1

4013364152397, 4013364152397

Downloads

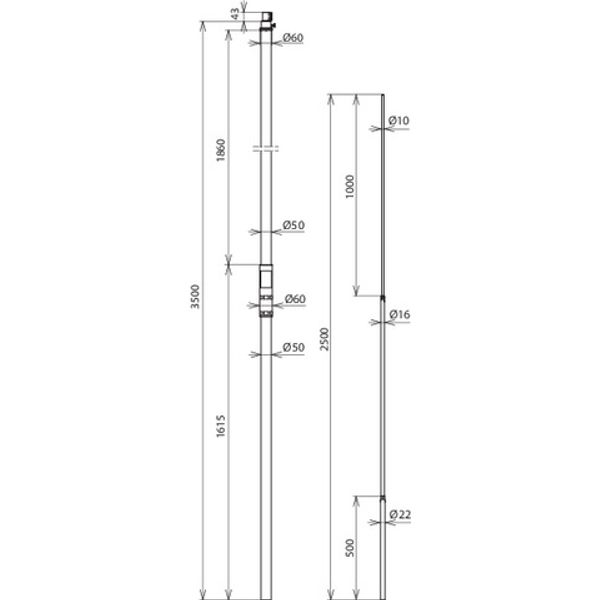

Product data sheet Dimensioned drawing

Description

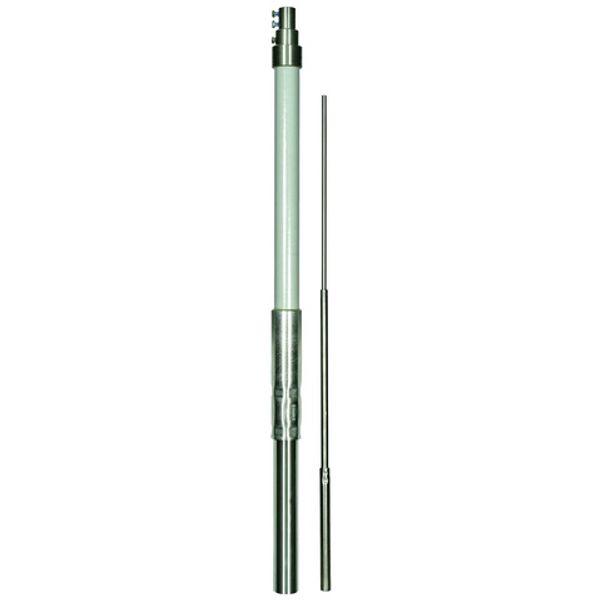

Supporting tube GRP/StSt with interior sealing end and EB spring element for the HVI power Conductor to be used for the installation of a separated (insulated) air-termination system with air-termination rod. For keeping the separation distance to electrically conductive parts according to IEC/EN 62305-3. Tube D50 mm made of glass-fibre reinforced plastic (GRP), UV stabilised, light grey colour, material factor km = 0.7. One-piece type, combined with air-termination rod (D22 / 16 / 10 mm, length 2500 mm) made of StSt.
