Supp. tube D 50mm L 5000mm GRP/Al w. air-term. rod D 10mm L 1000mm

Order only

Price (excl. VAT):

692,03 €

This price is valid until 24.12.25

EAN: 4013364271944

MPN: 105565

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Supp. tube D 50mm L 5000mm GRP/Al w. air-term. rod D 10mm L 1000mm
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of accessory/spare part	Support pipe
Material	Aluminium/plastic

Packing details

Packing level 1

4013364271944, 4013364271944

Downloads

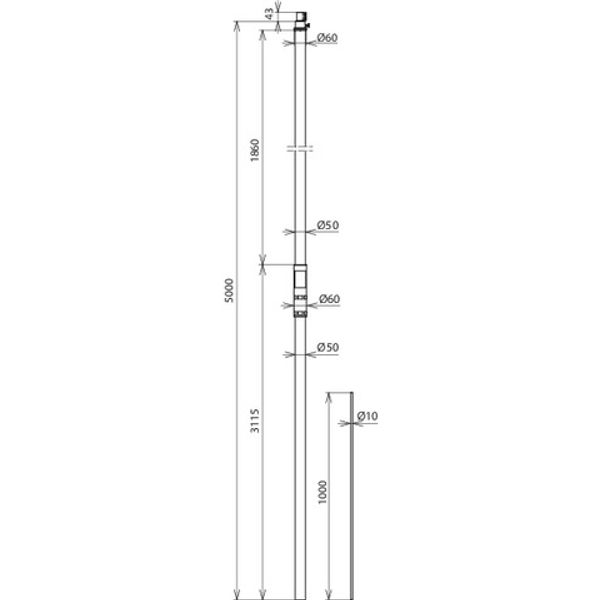

Product data sheet Dimensioned drawing

Description

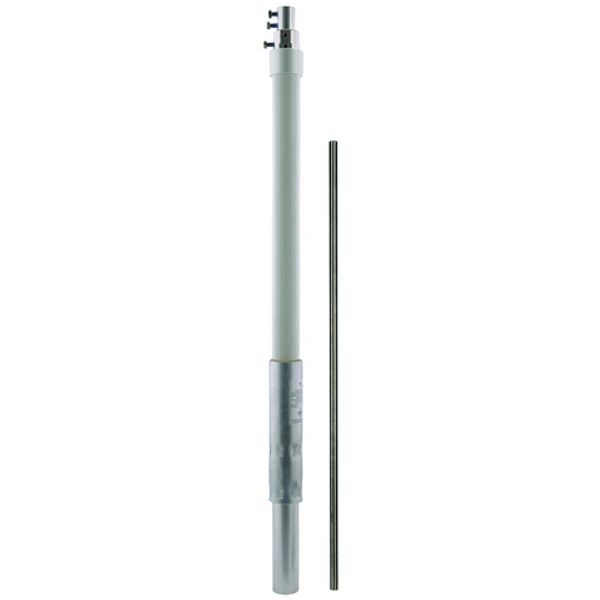

Supporting tube GRP/Al with internal sealing end and EB spring element for the HVI power Conductor to be used for the installation of a separated (insulated) air-termination system with air-termination tip. For keeping the separation distance to electrically conductive parts according to IEC/EN 62305-3. Tube D50 mm made of glass-fibre reinforced plastic (GRP), UV stabilised, light grey colour, material factor km= 0.7. One-piece type, combined with air-termination tip (D10 mm, length 1000 mm) made of Al.
