SUPIL-R DF6 2000-940 LDO FL-DBK LH40 WH - Recessed module
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4053167427896
MPN: 60211114
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | SUPIL-R DF6 2000-940 LDO FL-DBK LH40 WH - Recessed module |
| Brand | Zumtobel |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps |
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 59 mm |
| Colour housing | White |
| Colour rendering index CRI | 90-100 |
| Length | 218 mm |
| Height/depth | 56 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 4000 K |
| Max. system power | 25 W |
| Rated luminous flux according to IEC 62722-2-1 | 2204 lm |
| Luminaire efficacy | 89 lm/W |
Packing details
| Packing level 1 | 4053167427896, 4053167427896 |
Other Technical data
| Protection class | II |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 7 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.97 |
Downloads
Description

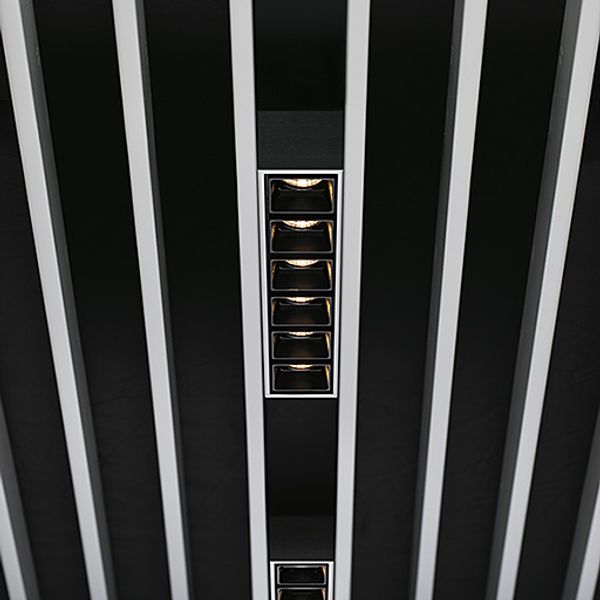

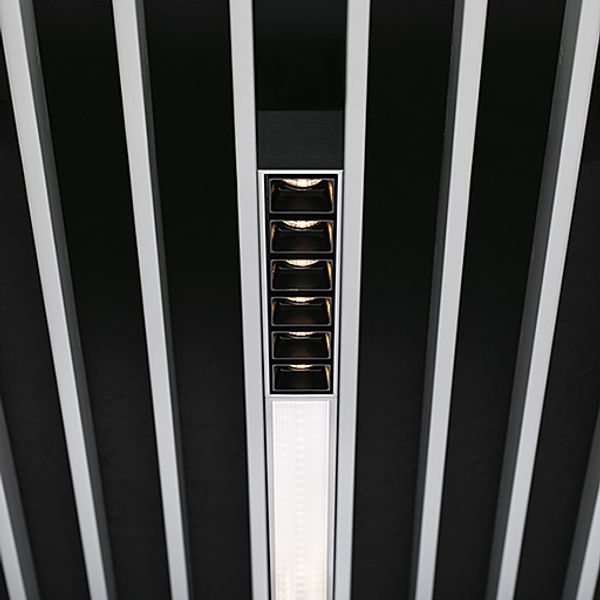

LED recessed module in compact, slim design for tool-free installation in a baffle ceiling, with 6 miniaturised single light heads in linear arrangement, length: 218mm; symmetric wide beam homogeneous light distribution with a beam angle of 60°; defined light emission; FLOOD distribution characteristic; reflector: silver with black deco edge; light control via high-quality aluminium-sputtered primary reflector unit made of polycarbonate based on multilayer MPO+ micropyramidal optic, lamps: LED2200-940; Colour rendering Ra > 90, colour temperature 4000 K (neutral white); Chromaticity tolerance (initial MacAdam): 2; Luminaire luminous flux: 2204 lm, Luminaire efficacy: 88 lm/W; service life: 50000h at 90% luminous flux; housing made of aluminium extrusion, white powder coated; pre-assembled model consisting of LED module and control unit, Slave luminaire for DALI control (DALI only), mounted on flexible base plate; power connection: 5-pole connector terminal; Luminaire input power: 25 W; mains voltage: 220-240 V / 0/50/60 Hz, for use with 220V DC central battery ; Lamella height 40; simple tool-free installation in a baffle ceiling via fixing clips; dimensions: 218x59x56 mm; weight: 0.79 kg:
Note: through-wiring on request
