SUP2-R M R72 LED550-940 SP 600MA WH TL - LED ceiling-recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4053167313816
MPN: 60817623
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | SUP2-R M R72 LED550-940 SP 600MA WH TL - LED ceiling-recessed luminaire |
| Brand | Zumtobel |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Colour rendering index CRI | 90-100 |
| Height/depth | 110 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 12 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 4000 K |
| Max. system power | 7.2 W |
| Rated luminous flux according to IEC 62722-2-1 | 750 lm |
| Luminaire efficacy | 105 lm/W |
Packing details
| Packing level 1 | 4053167313816, 4053167313816 |
Other Technical data
| Protection class | III |
| Outer diameter | 85 mm |
| Reflector | None |
| Lamp holder | None |
| Connection type | Other |
| Colour housing | White |
| Voltage type | DC |
| With movement sensor | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 8 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Colour temperature adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 120 mm |
| Power factor | 1 |
Downloads
Description

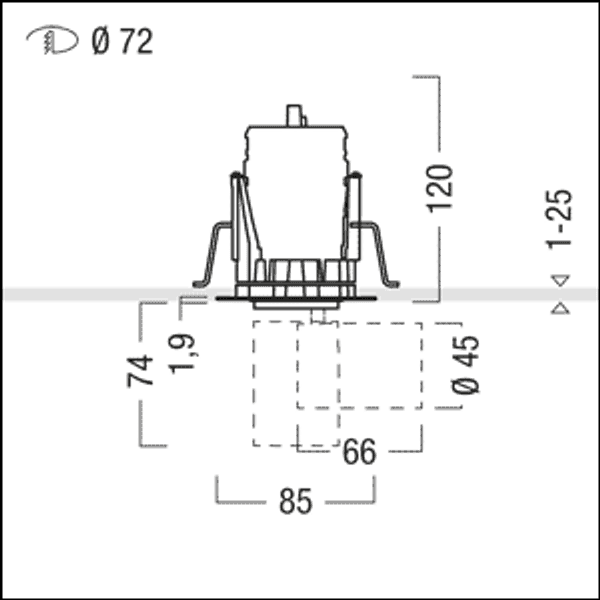

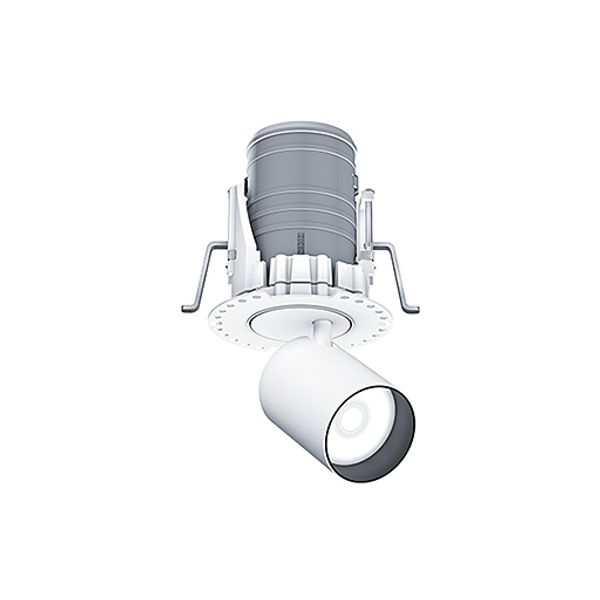

Recessed luminaire unit, "trimless" for ceiling-flush installation in plaster ceilings; with 1 LED spotlight head, "midi" construction size; equipped with lens system for high quality accent lighting in museums and exhibitions spaces; combination of LED PCBs, lens and film creates uniform light distribution with high intensity and soft transitions, without stray light from the light cone; lamp(s): 1/7.2W, Colour rendering Ra > 90, colour temperature 4000 K; Luminaire or spotlight with SPOT light distribution; colour tolerance: SDCM 2 initial, LED PCBs premium-selected; Luminaire luminous flux: 750 lm, Luminaire efficacy: 104 lm/W; service life: 50000h for luminous flux at 90% of initial value; lamp unit can rotate through 350°, tilt through 90° and is completely retractable; lamp unit and recessed housing of die-cast aluminium, white coated, ceiling-flush mounting in plaster ceilings (trimless); optic consists of glass lens and Plastic film; front ring is for glare reduction and accommodating films; mounting using concealed screws in ceilings of thickness 1-25mm; includes perforated planar ring with plastering edge; ceiling cutout: Ø72mm, recess depth: 120mm; weight: 0.24 kg;
Note: order control gear (600mA), connection cable and distributor separately; film can be replaced to achieve other light distribution patterns; ring louvre or the extended anti-glare cylinder can be exchanged for the front ring.;
Use with presence/motion sensors is not permissable
