SUP2-R L R92 1000-927-65 FL LDO WH WH - LED ceiling-recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4053167520023
MPN: 60819133
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | SUP2-R L R92 1000-927-65 FL LDO WH WH - LED ceiling-recessed luminaire |
| Brand | Zumtobel |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Colour rendering index CRI | 90-100 |
| Height/depth | 137 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 2700 K |
| Max. system power | 19 W |
| Rated luminous flux according to IEC 62722-2-1 | 1000 lm |
| Luminaire efficacy | 53 lm/W |
Packing details
| Packing level 1 | 4053167520023, 4053167520023 |
Other Technical data
| Protection class | II |
| Outer diameter | 100 mm |
| Reflector | None |
| Lamp holder | None |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 10 lm |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 16 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 26 |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | Continuously variable |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 150 mm |
| Power factor | 0.95 |
Downloads
Description

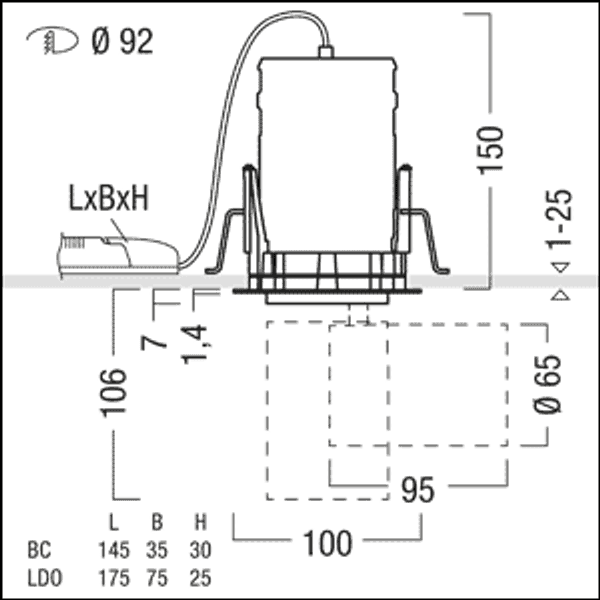

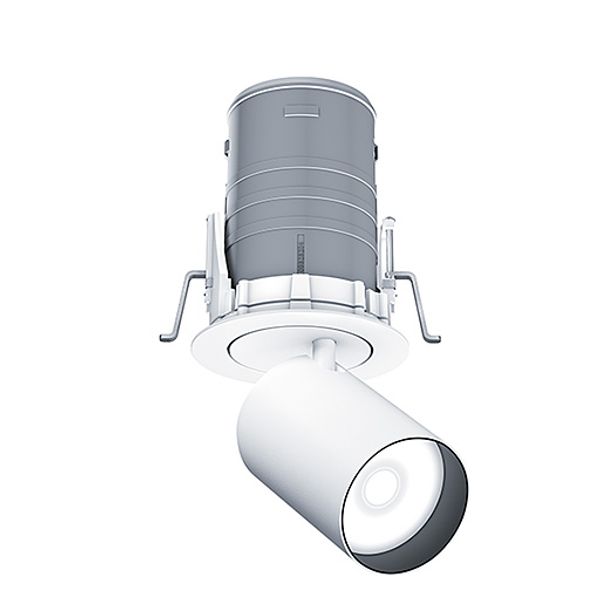

Recessed luminaire unit with 1 LED spotlight head, "maxi" construction size; equipped with lens system for high quality accent lighting in museums and exhibitions spaces; combination of LED PCBs, lens and film creates uniform light distribution with high intensity and soft transitions, without stray light from the light cone; lamp(s): 1/19W, Colour rendering Ra > 90, colour temperature (tunable) 2700-6500 K; Luminaire or spotlight with FLOOD light distribution; colour tolerance: SDCM 2 initial, LED PCBs premium-selected; Luminaire luminous flux: 1000 lm, Luminaire efficacy: 53 lm/W; service life: 50000h for luminous flux at 70% of initial value; lamp unit can rotate through 350°, tilt through 90° and is completely retractable; lamp unit and recessed housing of die-cast aluminium, white coated, cover ring coated white; optic consists of glass lens and Plastic film; front ring is for glare reduction and accommodating films; mounting using concealed screws in ceilings of thickness 1-25mm; ceiling cutout: Ø92mm, recess depth: 150mm; weight: 0.9 kg;
Note: connection cable and distributor separately; film can be replaced to achieve other light distribution patterns; ring louvre or the extended anti-glare cylinder can be exchanged for the front ring;
Use with presence/motion sensors is not permissable
