SUP2 M PROJ LED800-940 FRM DIM BK - LED accent spot
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
587,44 €
EAN: 9008709813182
MPN: 42927724
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | SUP2 M PROJ LED800-940 FRM DIM BK - LED accent spot |
| Brand | Zumtobel |
| Categories |
Luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

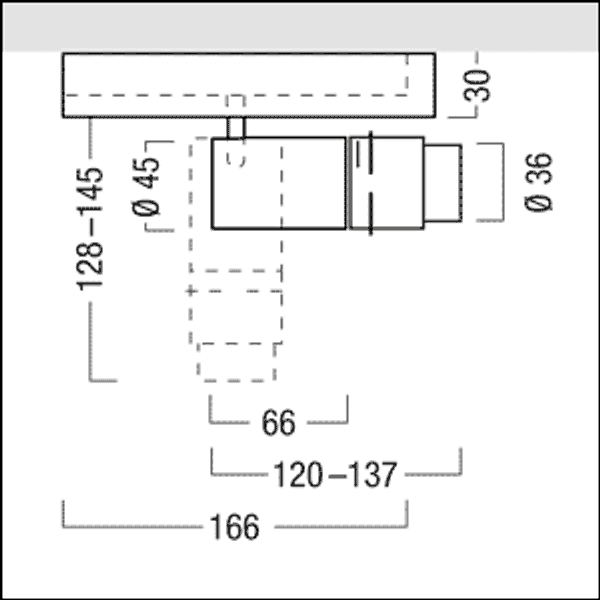

| Width | 45 mm |
| Length | 166 mm |
| Height/depth | 165 mm |
| Nominal voltage | 48 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 4000 K |
| Max. system power | 9 W |
Packing details
| Packing level 1 | 9008709813182, 9008709813182 |
Other Technical data
| Protection class | III |
| Reflector | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Busbar adapter |
| Colour housing | Black |
| Voltage type | DC |
| With movement sensor | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Connectable conductor cross section | 2.5 mm² |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | Yes |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Power factor | 1 |
Downloads
Description
LED spotlight (projection) "midi" construction size; equipped with lens system for high-quality accent lighting in museums and exhibition spaces; focusing via objective lens; lenses and shield are integrated into spotlight housing for avoiding stray light; Luminaire with shield for crisp, rich-contrast, rectangular illumination of surfaces; shield can be completely closed; Luminaire with low voltage adapter for Zumtobel SUPERSYSTEM II (48 V) low voltage track; adapter is fixed without tools and contains electronics converting the constant voltage (48V) to constant current; lamp(s): 1/8.2W, Colour rendering Ra > 90, colour temperature 4000 K; colour tolerance: SDCM 2 initial, LED PCBs premium-selected; luminaire luminous flux: to approx. 600 lm; service life: 50000h at 80 % luminous flux; dimming of illuminance, Luminaire with dimming directly over luminaire; spotlight can rotate through 360° and tilt through 90°; luminaire housing made of die-cast aluminium, coated black; lens: polished silicate glass; Luminaire input power: 9 W; dimensions: 166x45x165 mm; weight: 0.34 kg;
Please refer to installation instructions for photometric data.;
Use with presence/motion sensors is not permissable
