SUP2 L LED900-940 WFL DIM TLVH WH - LED accent spot
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4053167339076
MPN: 60715034
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | SUP2 L LED900-940 WFL DIM TLVH WH - LED accent spot |
| Brand | Zumtobel |
| Categories |
Luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 65 mm |
| Colour rendering index CRI | 90-100 |
| Length | 166 mm |
| Height/depth | 137 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 48 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
| Max. system power | 13 W |
| Rated luminous flux according to IEC 62722-2-1 | 950 lm |
| Luminaire efficacy | 74 lm/W |
Packing details
| Packing level 1 | 4053167339076, 4053167339076 |
Other Technical data
| Protection class | III |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Busbar adapter |
| Colour housing | White |
| Voltage type | DC |
| With movement sensor | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Connectable conductor cross section | 2.5 mm² |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 95 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | Yes |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 21 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Power factor | 1 |
Downloads
Description

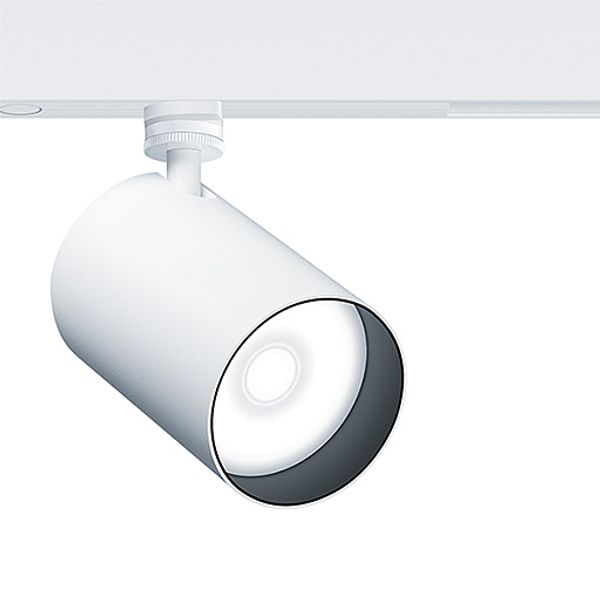

LED spotlight module with one LED spotlight unit, "maxi" construction size; equipped with lens system for high quality accent lighting in museums and exhibitions spaces; combination of LED PCBs, lens and film creates uniform light distribution with high intensity and soft transitions, without stray light from the light cone; Luminaire with low voltage heavy load adapter for the Zumtobel low voltage track SUPERSYSTEM II (48 V)
, with additional locking specifically for wall mounting; adapter is fixed without tools and contains electronics converting the constant voltage (48V) to constant current; lamp(s): 1/13W, Colour rendering Ra > 90, colour temperature 4000 K; Luminaire with WIDE FLOOD light distribution; colour tolerance: SDCM 2 initial, LED PCBs premium-selected; Luminaire luminous flux: 950 lm, Luminaire efficacy: 73 lm/W; service life: 50000h for luminous flux at 90% of initial value; dimming of illuminance, Luminaire with dimming directly over luminaire; flicker-free light (amplitude dimming); lamp unit can rotate through 360° and tilt through 90°; axes of movement fixed independently using Allen key; lamp unit of die-cast aluminium, coated white; optic consists of glass lens and film of plastic; front ring is for glare reduction and accommodating films; Luminaire input power: 13 W; dimensions: 166x65x137 mm; weight: 0.47 kg;
Note: horizontal and vertical wall mounting is permissible; film can be replaced to achieve other light distribution patterns; ring louvre or the extended anti-glare cylinder can be exchanged for the front ring.;
Use with presence/motion sensors is not permissable
