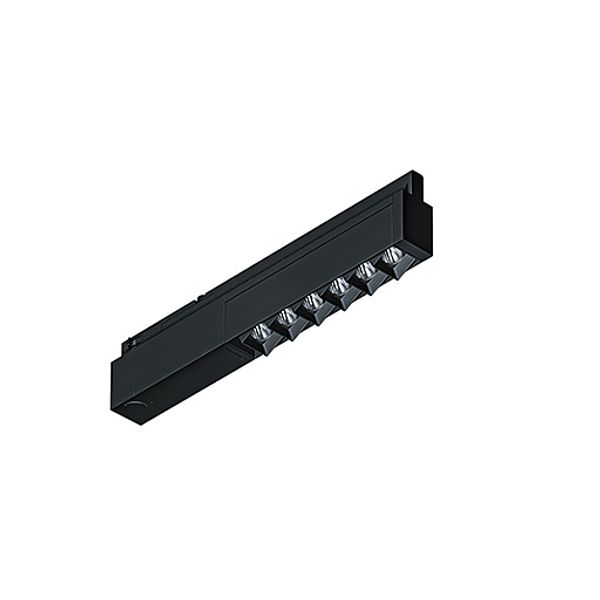

SUI TSG6 1900-940 SWI 3CV FL BK BK - LED spotlight
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
777,40 €
EAN: 4053167363903
MPN: 60211044
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | SUI TSG6 1900-940 SWI 3CV FL BK BK - LED spotlight |
| Brand | Zumtobel |
| Categories |
Track lights and accessories
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

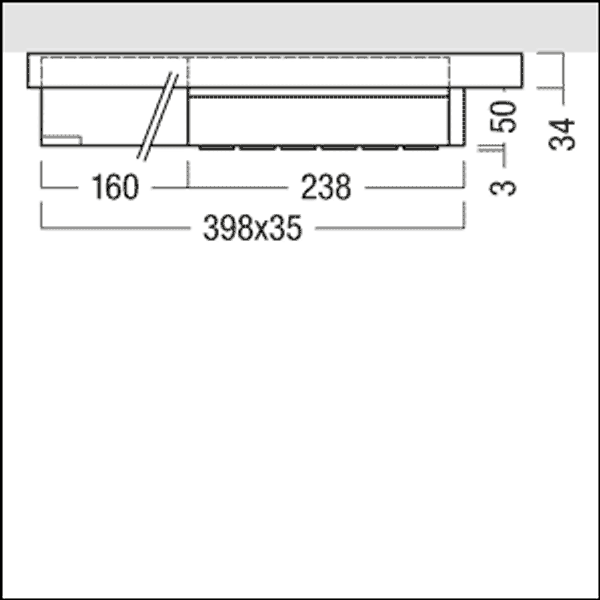

| Width | 35 mm |
| Colour rendering index CRI | 90-100 |
| Length | 398 mm |
| Height/depth | 79 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 4000 K |
| Max. system power | 21 W |
| Rated luminous flux according to IEC 62722-2-1 | 1800 lm |
| Luminaire efficacy | 86 lm/W |
Packing details
| Packing level 1 | 4053167363903, 4053167363903 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Connection type | Busbar adapter |
| Colour housing | Black |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | Yes |
| Connectable conductor cross section | 1.5 mm² |
| Colour of light | White |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | Yes |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 1800 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 6 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.96 |
Downloads
Description
Compact, pivotable LED spotlight with linear, synchronously pivotable "Synchro-Gimbal" single light heads; for flexible accent lighting and horizontal planar illumination with high brilliance and very good glare control; linear light head can be pivoted (±90°) on the track or is pivotable (±25°) in the U or H channel profile or ceiling-flush installation; with 6 linear single light heads, synchronously pivotable (±20°), enabling a rotating light beam; precise and uniform light distribution; very good glare control UGR<13, shielding angle 45°; Luminaire with 3-phase adapter with control gear in adapter track box (for 3-phase track); lamp(s): 18W LED1900-940; FLOOD distribution characteristic; reflector: silver with black deco edge, mirrorbrite; Colour rendering Ra > 90, colour temperature 4000 K (neutral white); Chromaticity tolerance (initial MacAdam): 2; Luminaire luminous flux: 1800 lm, Luminaire efficacy: 86 lm/W; service life: 50000 h for luminous flux at 90% of initial value; with control unit, switchable luminaire; patented innovative thermal design achieves passive cooling; spotlight housing made of die-cast aluminium, black painted; reflector unit made of polycarbonate 2-part: Kopf aluminium-sputtered, facetted mirrorbrite / square base with decorative edge; luminaire wired with halogen-free leads; Luminaire input power: 21 W; mains voltage: 220-240 V / 50/60 Hz ; dimensions: 398x35x79 mm; weight: 0.67 kg;
Note: Different colour combinations (design personalisation) of the individual components can be ordered as a variant via mySUPERSYSTEM INTEGRAL;
Note: suitable for mounting horizontally and vertically on wall; not suitable for point outlets.
