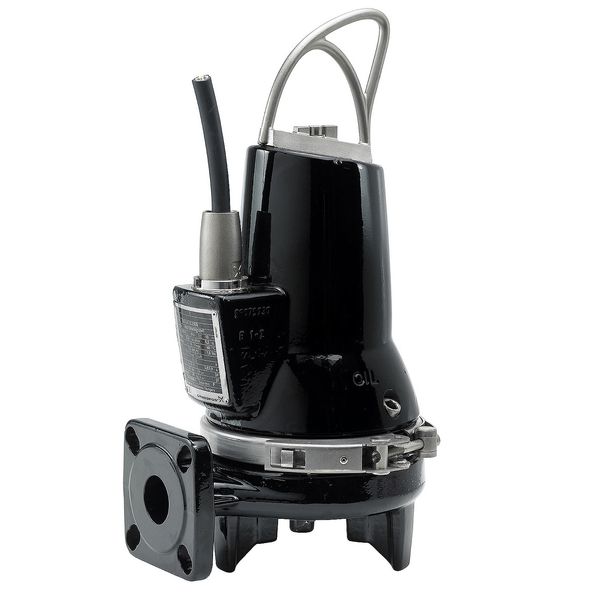

Submersible wastewater pump SEG.50.31.E.2.50B
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
4 502,18 €
EAN: 5713826396312
MPN: 99274436
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Submersible wastewater pump SEG.50.31.E.2.50B |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin | HU |
| Harmonized System Code | 8413 7021 00 |
| Nominal current | 6.3 A |
| Weight | 78.7 kg |
| Number of phases | 3 |
| Immersing depth | 7 m |
| Cable length | 10 m |
| Max. discharge flow | 31 m³/h |
| Max. static height | 23.8 m |
| Flange shape | Round |
| Rotational speed | 2900 1/min |
| Ambient temperature | 0 °C |
| Electrical connection | Cable |
| Rated voltage | 400 V |
| Explosion-proof | No |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP68 |
| Material impeller/pump wheel | Cast iron |
| Material motor housing | Cast iron |
| Material quality motor housing | Cast iron GG 20 (GJL-200) |
| Motor power input (P1) per motor | 3.9 kW |
| Motor power output (P2) per motor | 3.1 kW |
| Volume flow rate (BEP) | 12.96 m³/h |
| Discharge head at flow rate (BEP) | 250 kPa |
| Connection standard outlet side | EN 1092-2 |
| With protection against dry running | Yes |
| Pump diameter | 256 mm |
| With cutting system | Yes |
| Max. operating pressure | 6 bar |
| Material pump casing | Cast iron |
| Pump circuit | None |
| Insulation class according to IEC | F |
| Material quality pump casing | Cast iron GG 20 (GJL-200) |
| Suitable for dry set-up | No |
| Medium temperature (continuous) | 0 °C |
| Nominal diameter connection outlet side | DN 50 |
| Outer pipe diameter connection outlet side | 50 mm |
| Connection outlet side | Flange |
| Flange compression stage connection outlet side | PN 10 |
Packing details
| Packing level 1 | 5713826396312, 5713826396312 |
Downloads
Description
Submersible Grundfos SEG sewage grinder pumps (0.9-4 kW) are designed for pumping wastewater, sludge-containing water, and sewage. Fitted with a patented grinder system designed to grind the media.
