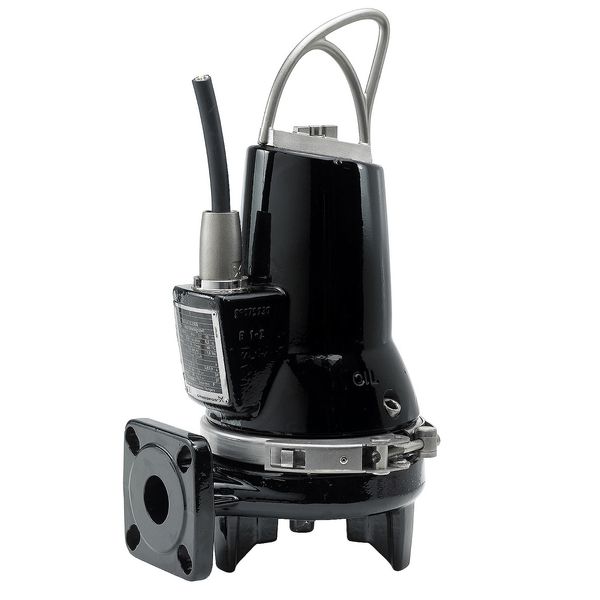

Submersible wastewater pump SEG.50.31.2.50B
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
3 372,07 €
EAN: 5713826395810
MPN: 99274386
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Submersible wastewater pump SEG.50.31.2.50B |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin | HU |
| Harmonized System Code | 8413 7021 00 |
| Nominal current | 7 A |
| Weight | 71.3 kg |
| Number of phases | 3 |
| Cable length | 10 m |
| Max. discharge flow | 31 m³/h |
| Max. static height | 23.8 m |
| Flange shape | Quadrangular |
| Rotational speed | 2900 1/min |
| Electrical connection | Cable |
| Rated voltage | 400 V |
| Explosion-proof | No |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP68 |
| Material impeller/pump wheel | Cast iron |
| Motor power input (P1) per motor | 3.7 kW |
| Motor power output (P2) per motor | 3.1 kW |
| Volume flow rate (BEP) | 24.34 m³/h |
| Discharge head at flow rate (BEP) | 185.3 kPa |
| Connection standard outlet side | EN 1092-2 |
| Nominal operating mode | S3 |
| Motor speed control | None |
| Pump diameter | 256 mm |
| With cutting system | Yes |
| Max. operating pressure | 6 bar |
| With foot bend | No |
| Material pump casing | Cast iron |
| Pump height | 594 mm |
| Insulation class according to IEC | F |
| Material quality pump casing | Cast iron GG 20 (GJL-200) |
| Suitable for dry set-up | No |
| Medium temperature (continuous) | 0 °C |
| Material quality impeller/pump wheel | Cast iron GG 20 (GJL-200) |
| Nominal diameter connection outlet side | DN 50 |
| Outer pipe diameter connection outlet side | 50 mm |
| Connection outlet side | Flange |
| Flange compression stage connection outlet side | PN 6 |
Packing details
| Packing level 1 | 5713826395810, 5713826395810 |
Downloads
Description
Submersible Grundfos SEG sewage grinder pumps (0.9-4 kW) are designed for pumping wastewater, sludge-containing water, and sewage. Fitted with a patented grinder system designed to grind the media.
