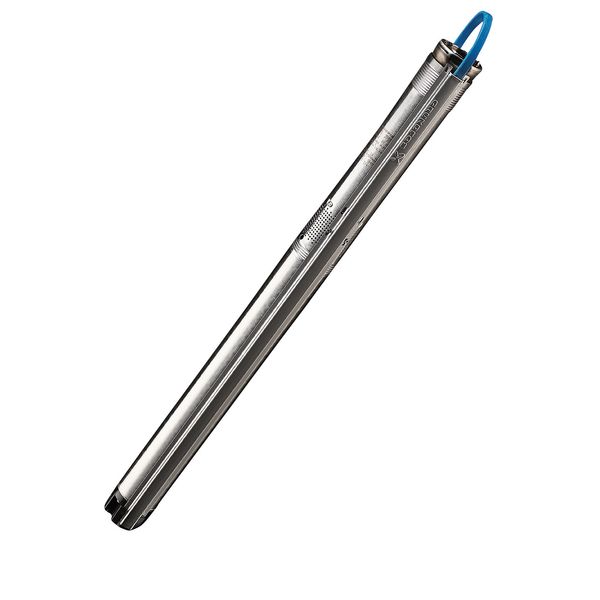

Submersible deepwell pump SQ 1-155 1.85 kW 1x200-240V 1,5m mod.BB
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 706,21 €
EAN: 5700396504056
MPN: 96510196
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Submersible deepwell pump SQ 1-155 1.85 kW 1x200-240V 1,5m mod.BB |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin | MX |
| Harmonized System Code | 8413 7029 00 |
| Nominal current | 11 A |
| Weight | 6.473 kg |
| Number of phases | 1 |
| Cable length | 1.5 m |
| Max. discharge flow | 1.3 m³/h |
| Rotational speed | 10700 1/min |

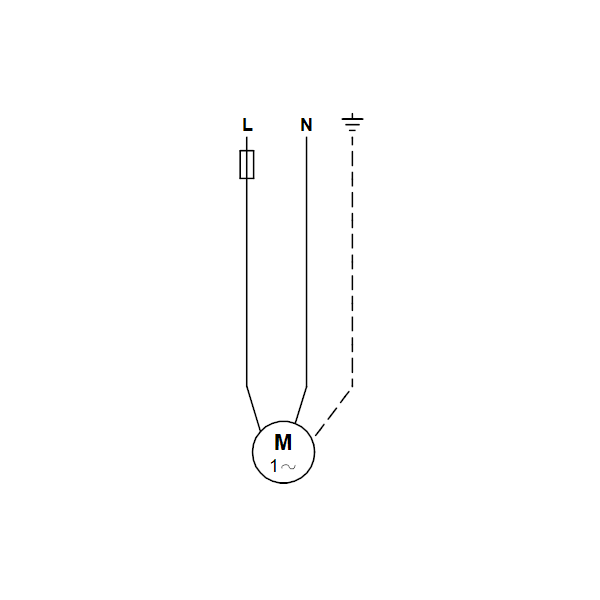

| Electrical connection | Cable |
| Rated voltage | 200 V |
| Frequency | 50/60 Hz |
| Degree of protection (IP) | IP68 |
| Material impeller/pump wheel | Other |
| Motor power output (P2) per motor | 1.85 kW |
| Volume flow rate (BEP) | 1 m³/h |
| Discharge head at flow rate (BEP) | 1480.4 kPa |
| Nominal operating mode | S1 |
| Min. drill hole diameter | 76 mm |
| Max. sand content | 50 g/m³ |
| Motor speed control | None |
| Pump diameter | 74 mm |
| Pump and motor length | 969 mm |
| Max. operating pressure | 15 bar |
| Material pump casing | Stainless steel |
| Insulation class according to IEC | F |
| Material quality pump casing | Stainless steel 304 (1.4301) |
| Medium temperature (continuous) | 0 °C |
| Material quality impeller/pump wheel | Other |
| With non-return valve | Yes |
| Nominal diameter connection outlet side | 1 1/4 inch (32) |
| Connection outlet side | Internal thread cylindrical BSPP-G (ISO 228-1) |
Packing details
| Packing level 1 | 5700396504056, 5700396504056 |
Downloads
Description
3' multi-stage, submersible pump designed for domestic water supply, liquid transfer in tanks, irrigation and environmental applications. The pump has 'floating' impellers, each with its own tungsten carbide/ceramic bearing.
