Submersible deepwell pump SP 95-5 22 kW 3x400Y 50Hz MS6T30 Rp5"
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
8 547,70 €
EAN: 5708601061332
MPN: 19001905
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Submersible deepwell pump SP 95-5 22 kW 3x400Y 50Hz MS6T30 Rp5" |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin | DK |
| Harmonized System Code | 8413 7029 00 |
| Nominal current | 46.5 A |
| Weight | 108.1 kg |
| Number of phases | 3 |
| Cable length | 5 m |
| Max. discharge flow | 123.5 m³/h |
| Max. static height | 110 m |
| Rotational speed | 2900 1/min |
| Electrical connection | Cable |
| Rated voltage | 380 V |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP68 |
| Material impeller/pump wheel | Stainless steel |
| Motor power output (P2) per motor | 22 kW |
| Volume flow rate (BEP) | 95 m³/h |
| Discharge head at flow rate (BEP) | 598.04 kPa |
| Nominal operating mode | S1 |
| Min. drill hole diameter | 188 mm |
| Max. sand content | 50 g/m³ |
| Motor speed control | None |

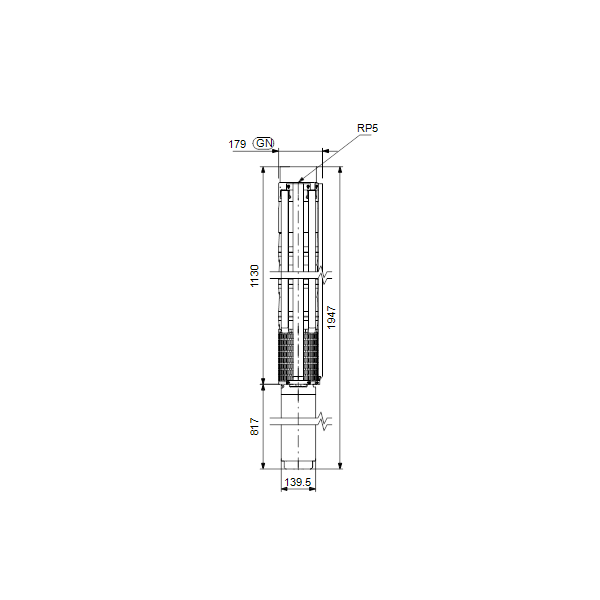

| Pump diameter | 817 mm |
| Pump and motor length | 1947 mm |
| Max. operating pressure | 60 bar |
| Material pump casing | Stainless steel |
| Insulation class according to IEC | F |
| Material quality pump casing | Stainless steel 304 (1.4301) |
| Medium temperature (continuous) | -15 °C |
| Material quality impeller/pump wheel | Stainless steel 304 (1.4301) |
| With non-return valve | Yes |
| Nominal diameter connection outlet side | 5 inch (125) |
| Connection outlet side | Internal thread cylindrical BSPP-G (ISO 228-1) |
Packing details
| Packing level 1 | 5708601061332, 5708601061332 |
Downloads
Description

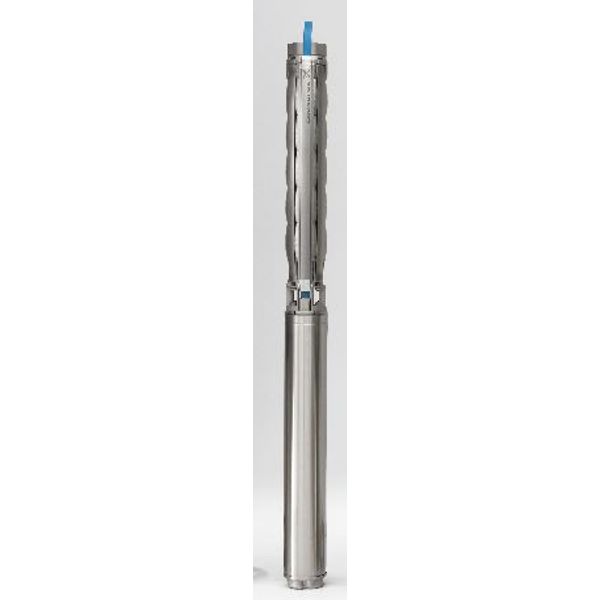

Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in stainless steel, EN 1.4301 (AISI 304).This pump carries drinking water approval.
