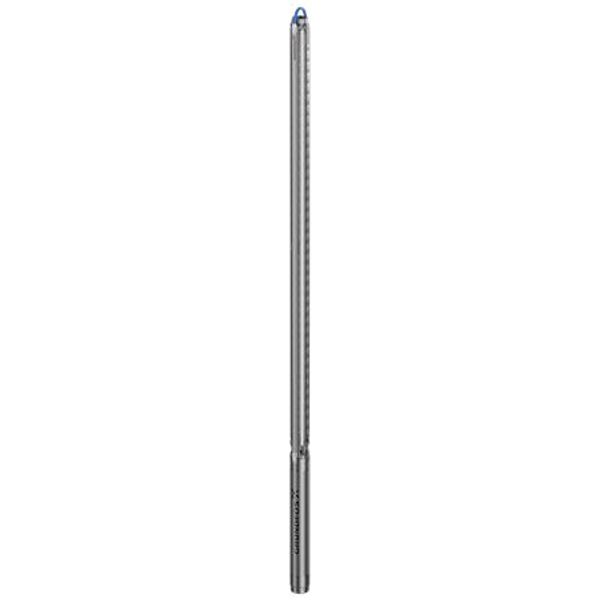

Submersible deepwell pump SP 9-11 Rp2 4" 2.2kW 1X220-230V/50Hz
Order only
Price (excl. VAT):
Price by request
EAN: 5712600105317
MPN: 98699024
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Submersible deepwell pump SP 9-11 Rp2 4" 2.2kW 1X220-230V/50Hz |
| Brand | GRUNDFOS |
| Country of origin | DK |
| Harmonized System Code | 8413 7029 00 |
| Nominal current | 14 A |
| Weight | 31.223 kg |
| Number of phases | 1 |
| Cable length | 1.7 m |
| Max. discharge flow | 11.7 m³/h |
| Max. static height | 73.6 m |
| Rotational speed | 2900 1/min |
| Electrical connection | Connecting plug |
| Rated voltage | 220 V |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP68 |
| Material impeller/pump wheel | Stainless steel |
| Motor power output (P2) per motor | 2.2 kW |
| Volume flow rate (BEP) | 9 m³/h |
| Discharge head at flow rate (BEP) | 563.73 kPa |
| Nominal operating mode | S1 |
| Min. drill hole diameter | 105 mm |
| Max. sand content | 150 g/m³ |
| Motor speed control | None |
| Pump diameter | 577 mm |
| Pump and motor length | 1365 mm |
| Max. operating pressure | 60 bar |
| Material pump casing | Stainless steel |
| Insulation class according to IEC | F |
| Material quality pump casing | Stainless steel 304 (1.4301) |
| Medium temperature (continuous) | -15 °C |
| Material quality impeller/pump wheel | Stainless steel 304 (1.4301) |
| With non-return valve | Yes |
| Nominal diameter connection outlet side | 2 inch (50) |
| Connection outlet side | Internal thread cylindrical BSPP-G (ISO 228-1) |
Packing details
| Packing level 1 | 5712600105317, 5712600105317 |
Downloads
Description
Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in stainless steel, EN 1.4301 (AISI 304). This pump carries drinking water approval.
