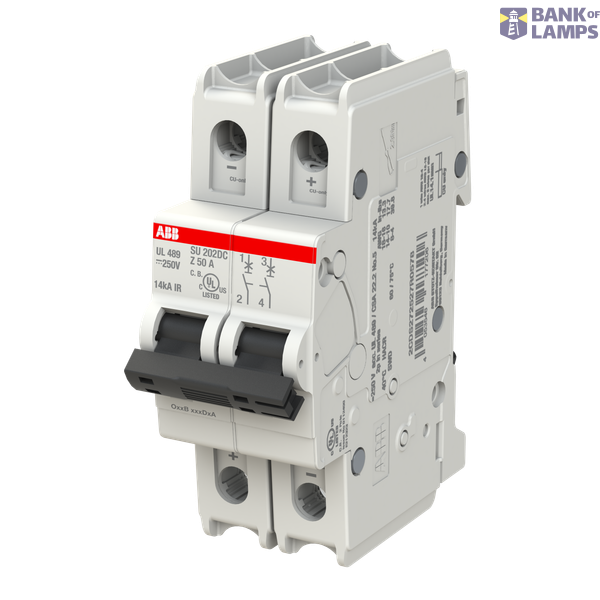

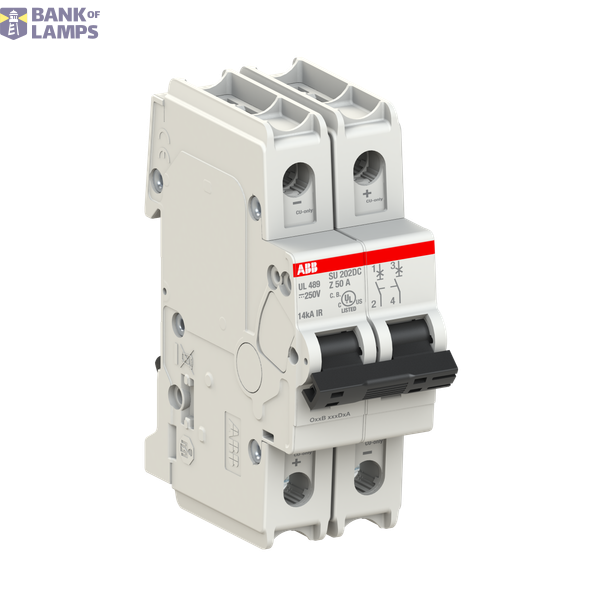

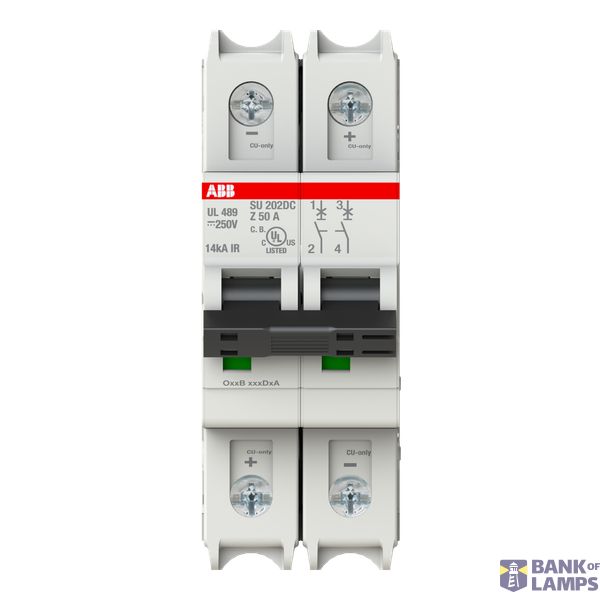

SU202DC-Z50 Miniature Circuit Breaker
Order only
Price (excl. VAT):
Price by request
EAN: 4053546177206
MPN: 2CDS272527R0578
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SU202DC-Z50 Miniature Circuit Breaker |
| Brand | ABB |
| Categories |
Circuit breakers 50A
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 2010 00 |
| Rated current | 50 A |
| Release characteristic | Z |
| Width in number of modular spacings | 2 |
| Number of poles (total) | 2 |
Packing details
| Packing level 1 | 4053546177206, 4053546177206 |
Other Technical data
| Voltage type | DC |
| Built-in depth | 69 mm |
| Frequency | - Hz |
| Rated insulation voltage Ui | 250 V |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 3 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 2 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 0.75-35 mm² |
| Connectable conductor cross section multi-wired | 0.75-25 mm² |
| Ambient temperature during operating | -20-55 °C |
| Flush-mounted installation | No |
| Additional equipment possible | Yes |
| Rated impulse withstand voltage Uimp | 3 kV |
Description
SU202DC-Z50 Miniature Circuit Breaker Z-Char., 14kA, 50A, 2P
