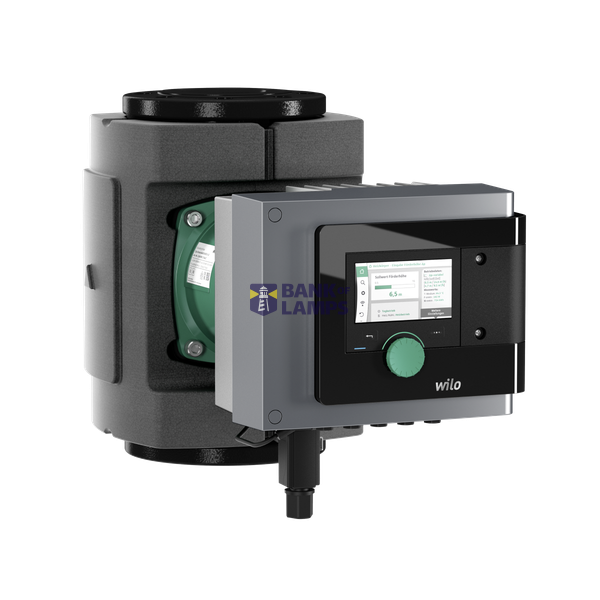

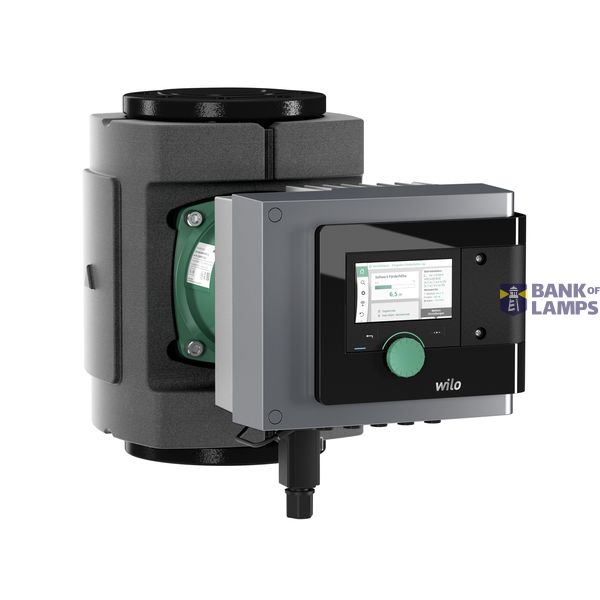

Stratos MAXO 80/0,5-6 PN10
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Stratos MAXO 80/0,5-6 PN10 |
| Brand | WILO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7030 00 |
| ETIM | EC010980 |
| Nominal current | 3.71 A |
| Number of phases | 1 |
| Max. discharge flow | 62.32 m³/h |
| Max. static height | 8.271 m |
| Flange shape | Round |
| Ambient temperature | -10 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |
| Rated voltage | 230 V |

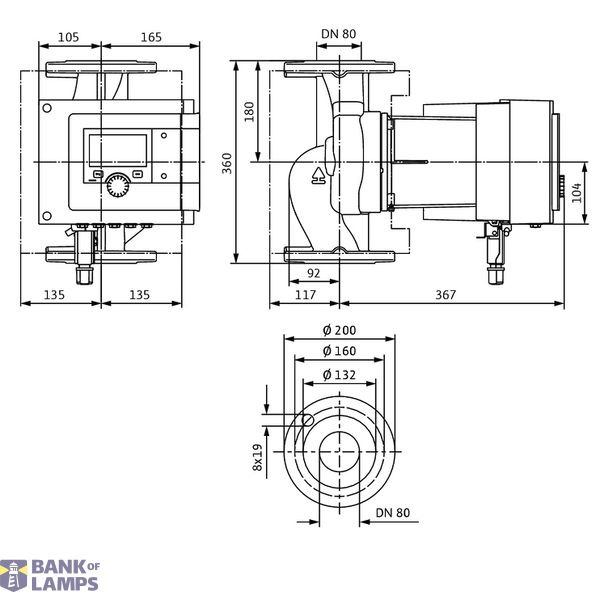

| Built-in length | 360 mm |
| Frequency | 50/60 Hz |
| Degree of protection (IP) | IPX4D |
| Radio standard Bluetooth | Yes |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Pump power consumption (solpump) | 850 W |
| Pump power consumption standby (solstandbypump) | 20 W |
| Material impeller/pump wheel | Polypropylene (PP) |
| Motor power input (P1) per motor | 0.85 kW |
| Volume flow rate (BEP) | 32.54 m³/h |
| Discharge head at flow rate (BEP) | 51.78 kPa |
| Connection standard inlet side | EN 1092-2 |
| Connection standard outlet side | EN 1092-2 |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | Yes |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material pump casing | Cast iron |
| Double pump | No |
| Insulation class according to IEC | F |
| Material quality pump casing | Cast iron GG 25 (GJL-250) |
| Medium temperature (continuous) | -10 °C |
| Material quality impeller/pump wheel | PP-GF |
| Connection inlet side | Flange |
| Nominal diameter connection inlet side | DN 80 |
| Nominal diameter connection outlet side | DN 80 |
| Outer pipe diameter connection inlet side | 80 mm |
| Outer pipe diameter connection outlet side | 80 mm |
| Connection outlet side | Flange |
| Energy Efficiency Index (EEI) | 0.17 |
| Flange compression stage connection inlet side | PN 10 |
| Flange compression stage connection outlet side | PN 10 |
Packing details
| Packing level 1 | 4048482699745, 4048482699745 |
Downloads
Description
Smart glandless circulator with screwed connection or flange connection, EC motor with integrated electronic power adjustment.
Others
Order only
2,73 €
per pcs
Subtotal: 27,30 €
MOQ: 10
EAN: 4046356908177
MPN: 2201741
Box: 1
