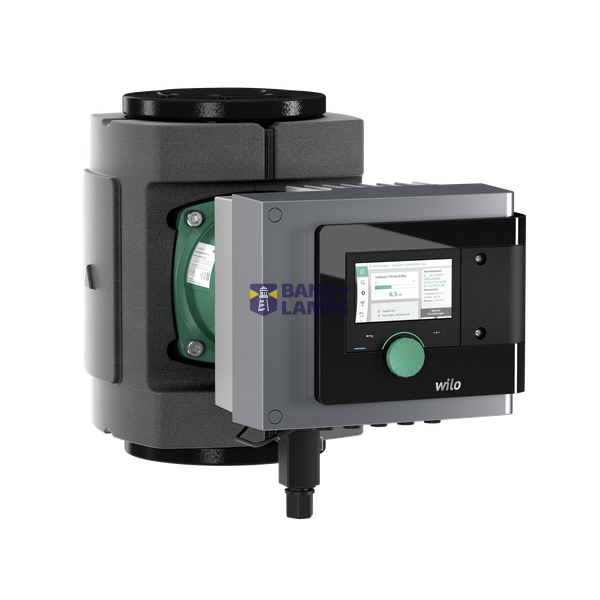

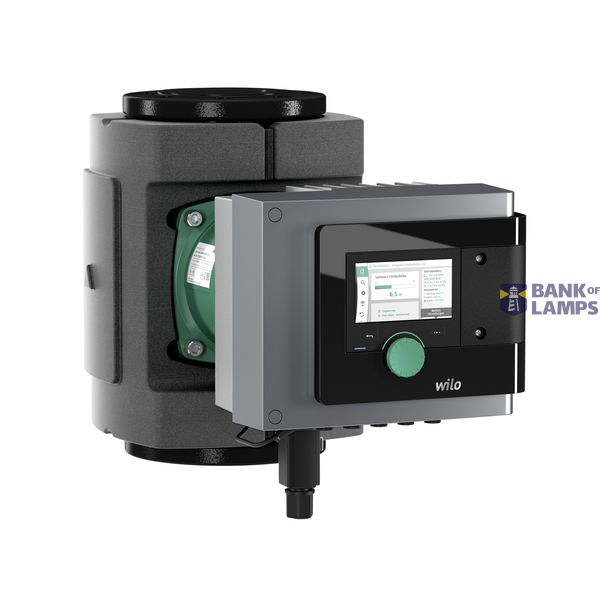

Stratos MAXO 32/0,5-16 PN6/10
Order only
Price (excl. VAT):
2 946,64 €
EAN: 4048482699578
MPN: 2164581
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Stratos MAXO 32/0,5-16 PN6/10 |
| Brand | WILO |
| Categories |
Pump Systems & Units
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7030 00 |
| ETIM | EC010980 |
| Nominal current | 2.23 A |
| Number of phases | 1 |
| Max. discharge flow | 21.02 m³/h |
| Max. static height | 16.1 m |
| Flange shape | Round |
| Ambient temperature | -10 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | Yes |
| Rated voltage | 230 V |

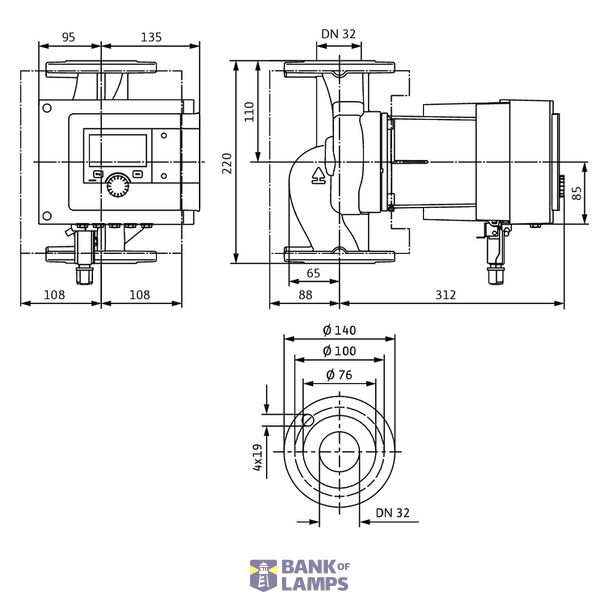

| Built-in length | 220 mm |
| Frequency | 50/60 Hz |
| Degree of protection (IP) | IPX4D |
| Radio standard Bluetooth | Yes |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | Yes |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Pump power consumption (solpump) | 510 W |
| Pump power consumption standby (solstandbypump) | 10 W |
| Material impeller/pump wheel | Polypropylene (PP) |
| Motor power input (P1) per motor | 0.51 kW |
| Volume flow rate (BEP) | 11.03 m³/h |
| Discharge head at flow rate (BEP) | 94 kPa |
| Connection standard inlet side | EN 1092-2 |
| Connection standard outlet side | EN 1092-2 |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | Yes |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material pump casing | Cast iron |
| Double pump | No |
| Insulation class according to IEC | F |
| Material quality pump casing | Cast iron GG 25 (GJL-250) |
| Medium temperature (continuous) | -10 °C |
| Material quality impeller/pump wheel | PP-GF |
| Connection inlet side | Flange |
| Nominal diameter connection inlet side | DN 32 |
| Nominal diameter connection outlet side | DN 32 |
| Outer pipe diameter connection inlet side | 32 mm |
| Outer pipe diameter connection outlet side | 32 mm |
| Connection outlet side | Flange |
| Energy Efficiency Index (EEI) | 0.18 |
| Flange compression stage connection inlet side | PN 6 |
| Flange compression stage connection outlet side | PN 6 |
Packing details
| Packing level 1 | 4048482699578, 4048482699578 |
Downloads
Description
Smart glandless circulator with screwed connection or flange connection, EC motor with integrated electronic power adjustment.
