Steinel Sensor Binnenlamp RS PRO LED S2 WW PMMA
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Steinel Sensor Binnenlamp RS PRO LED S2 WW PMMA |
| Brand | STEINEL |
| ETIM | EC002892 |
| Width | 0 mm |
| Colour housing | Silver |
| Colour rendering index CRI | 80-89 |
| Length | 0 mm |
| Height/depth | 86 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 230-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 3000 K |
| Max. system power | 28 W |
| Rated luminous flux according to IEC 62722-2-1 | 1386 lm |
| Luminaire efficacy | 1440 lm/W |
Packing details
| Packing level 1 | 4007841661816 |
Other Technical data
| Protection class | II |
| Outer diameter | 362 mm |
| Conductor cross section | 0 mm² |
| Connection type | Other |
| Voltage type | AC |

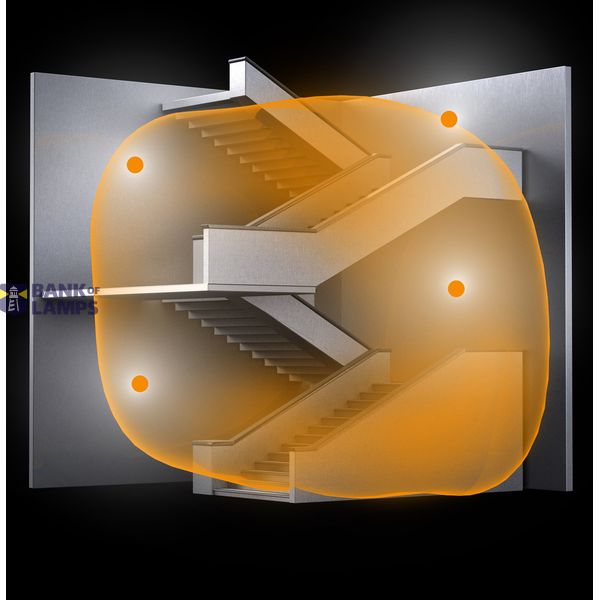

| With movement sensor | Yes |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| With light sensor | Yes |
| Suitable for suspended mounting | No |
| Luminous intensity | 0 cd |
| Number of poles | 0 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 0 |
| Suitable for wall mounting | Yes |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| With air slots | No |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Rated life time L90/B10 at 25 °C | 0 h |
| Total harmonic distortion | 0 |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Dimming DALI | No |
| No dim function | No |
| Light distributor | None |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Unified Glare Ratio (UGR) | 0 |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 0 % |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 0 mm |
| Surface protection housing | Other |
| Power factor | 0 |
| Energy Efficiency Index (EEI) | 0 |
