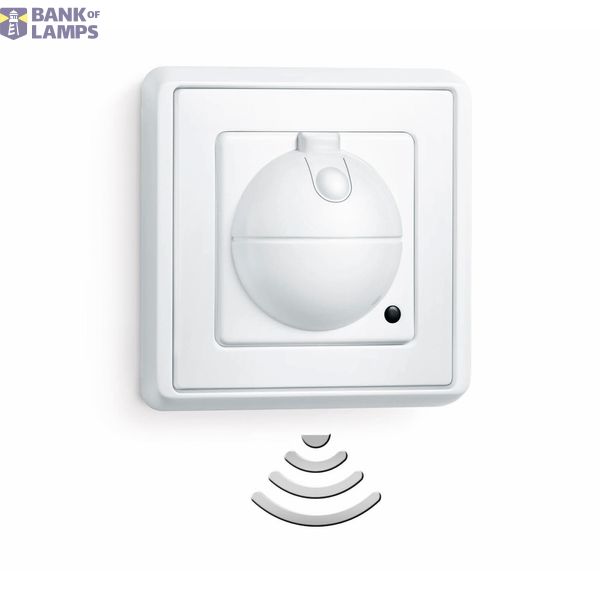

Steinel HF-sensorschakelaar HF 360 UP
In vendor's stock
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Steinel HF-sensorschakelaar HF 360 UP |
| Brand | STEINEL |
| Harmonized System Code | 8531 1030 00 |
| ETIM | EC000133 |
| Mounting method | Other |
| Colour | White |
| Width | 0 mm |
| Model | Movement sensor |
| Height | 55 mm |
| Depth | 0 mm |
| Connection type | Other |
| Frequency | 50 Hz |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 8 m |
| Max. switching power | 1000 W |
| Scan angle | 0 ° |
| Degree of protection (IP) | IP20 |
| Min. switch-on time | 30 s |
| Max. duty cycle | 30 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 1.1 m |
| Max. presence range | 0 m² |
| Max. switching power LED | 0 W |
| Sensor type | High frequency |
Packing details
| Packing level 1 | 4007841751111 |
Other Technical data
| Halogen free | Yes |
| Surface protection | Other |
| Creep-under protection | Yes |
| Voltage type | AC |
| Switching-on delay | 0 s |
| Switch-off delay | 300 s |
| Built-in depth | 0 mm |
| With remote control | No |
| Diameter | 0 mm |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |

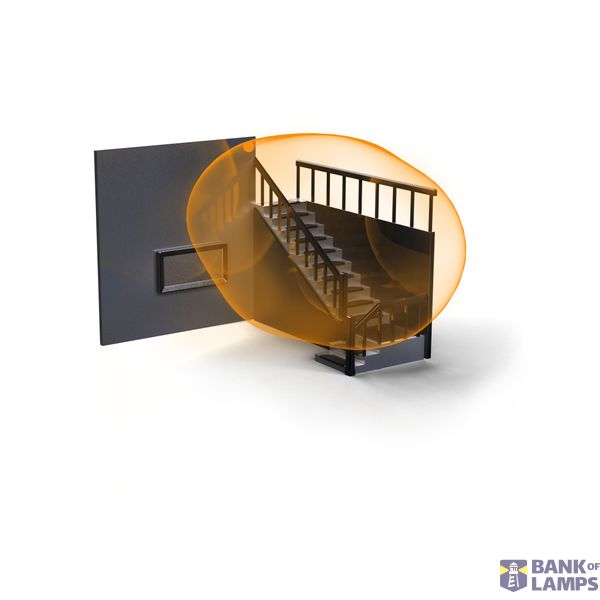

| Staircase monitoring | Yes |
| Bridging switch | Yes |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Temperature | 0-35 °C |
| Max. starting current | 120 A |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | No |
| Response value luminosity | 2-2000 lx |
| Suitable for C-load | Yes |
| Diameter detection range on floor | 16 m |
| Remote operation | No |
| HVAC-control | No |
| Constant light control | No |
| Substation input | Yes |
| RAL-number (similar) | 9010 |
| With signal unit | Yes |
| Control current | 0 mA |
| Teach-function for response value luminosity | No |
| Networkable | Yes |
| Forced switch off | Yes |
| Built-in length | 0 mm |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 360 ° |
| Suitable for wall mounting | Yes |
| Number of switching zones | 0 |
| With DALI interface | No |
| Forced switch on | No |
| Min. starting current | 0.1 A |
| Min. depth of built-in installation box | 66 mm |
| Suitable for ceiling mounting | No |
