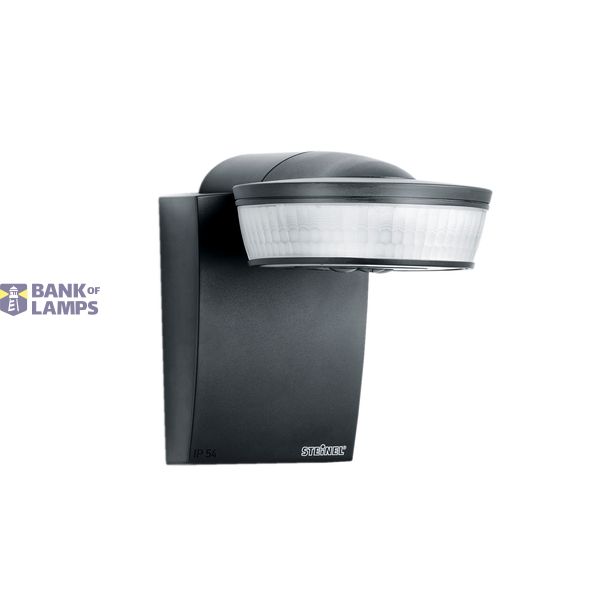

Steinel Bewegingsmelder SensIQ EVO KNX zwart
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Steinel Bewegingsmelder SensIQ EVO KNX zwart |
| Brand | STEINEL |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC001582 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | Yes |
| Other bus systems | None |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4007841029609 |
Other Technical data
| Mounting method | Other |
| Colour | Black |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 2 |
| Staircase monitoring | No |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 20 m |
| Max. transmission range sideways | 20 m |
| Number of digital inputs | 0 |
| Material | Plastic |

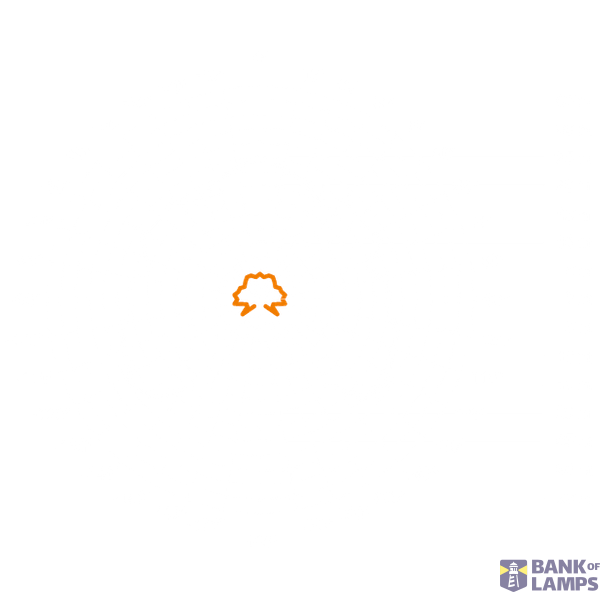

| Diameter detection range on floor | 8 m |
| Substation input | Yes |
| RAL-number (similar) | 9005 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | No |
| Transparent | No |
| Animal zone | No |
| Detection angle vertical | 180 ° |
| Detection angle horizontal | 300 ° |
| Min. switch-on time | 60 s |
| Max. duty cycle | 255 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | No |
| Optimum mounting height | 2 m |
| Min. depth of built-in installation box | 0 mm |
