Steinel Aanwezigheidsmelder IR Quattro SLIM KNX
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Steinel Presence detector IR Quattro SLIM KNX |
| Brand | STEINEL |
| Harmonized System Code | 8536 5019 00 |
| ETIM | EC001582 |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | Yes |
| Other bus systems | None |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4007841008888 |
Other Technical data
| Mounting method | Other |
| Colour | White |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 4 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |

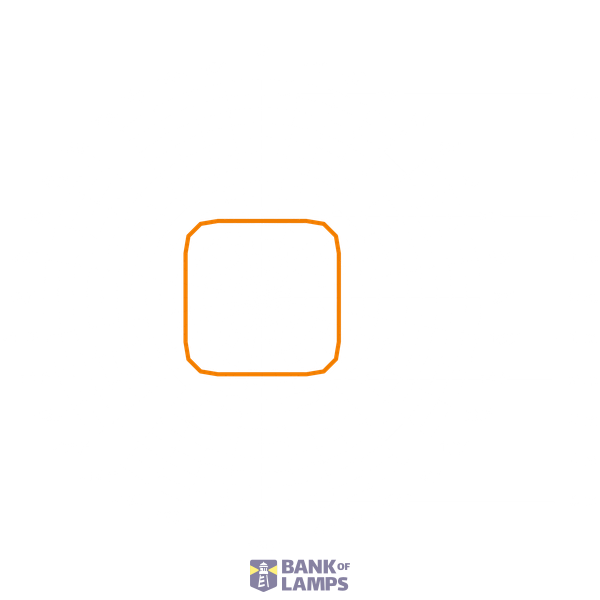

| Max. transmission range frontally | 2 m |
| Max. transmission range sideways | 2 m |
| Number of digital inputs | 0 |
| Material | Plastic |
| Diameter detection range on floor | 4 m |
| Substation input | Yes |
| RAL-number (similar) | 9010 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | No |
| Transparent | No |
| Animal zone | No |
| Detection angle vertical | 71 ° |
| Detection angle horizontal | 360 ° |
| Min. switch-on time | 0 s |
| Max. duty cycle | 255 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 2.8 m |
| Min. depth of built-in installation box | 66 mm |
