Steinel Aanwezigheidsmelder IR Quattro DIM
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Steinel Presence Monitor IR Quattro DIM |
| Brand | STEINEL |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC000133 |
| Mounting method | Other |
| Colour | White |
| Width | 120 mm |
| Model | Presence detector |
| Height | 76 mm |
| Depth | 76 mm |
| Connection type | Other |
| Frequency | 50-60 Hz |
| Max. transmission range frontally | 3.5 m |
| Max. transmission range sideways | 3.5 m |
| Max. switching power | 2000 W |
| Scan angle | 0 ° |
| Degree of protection (IP) | IP20 |
| Min. switch-on time | 30 s |
| Max. duty cycle | 30 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 2.8 m |
| Max. presence range | 4 m² |
| Max. switching power LED | 0 W |
| Sensor type | Passive infrared |
Packing details
| Packing level 1 | 4007841002718 |
Other Technical data
| Halogen free | Yes |
| Surface protection | Other |
| Creep-under protection | Yes |
| Voltage type | AC |
| Switching-on delay | 0 s |
| Switch-off delay | 1800 s |
| Built-in depth | 0 mm |
| With remote control | No |
| Diameter | 0 mm |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| Staircase monitoring | No |
| Bridging switch | Yes |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Temperature | -25-55 °C |
| Max. starting current | 800 A |
| Material | Plastic |
| Response value sensitivity adjustable | No |
| Dim function with dimmer basic element | Yes |
| Response value luminosity | 100-1000 lx |
| Suitable for C-load | Yes |

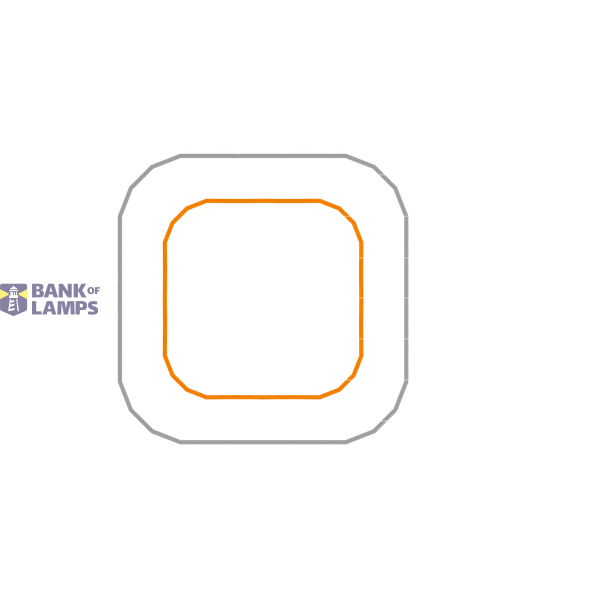

| Diameter detection range on floor | 5 m |
| Remote operation | Yes |
| HVAC-control | No |
| Constant light control | Yes |
| Substation input | Yes |
| RAL-number (similar) | 9010 |
| With signal unit | Yes |
| Control current | 0 mA |
| Teach-function for response value luminosity | Yes |
| Networkable | Yes |
| Forced switch off | Yes |
| Built-in length | 0 mm |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Detection angle horizontal | 360 ° |
| Suitable for wall mounting | No |
| Number of switching zones | 1760 |
| With DALI interface | No |
| Forced switch on | Yes |
| Min. starting current | 0.1 A |
| Min. depth of built-in installation box | 66 mm |
| Suitable for ceiling mounting | Yes |
| Anti-bacterial treatment | No |
