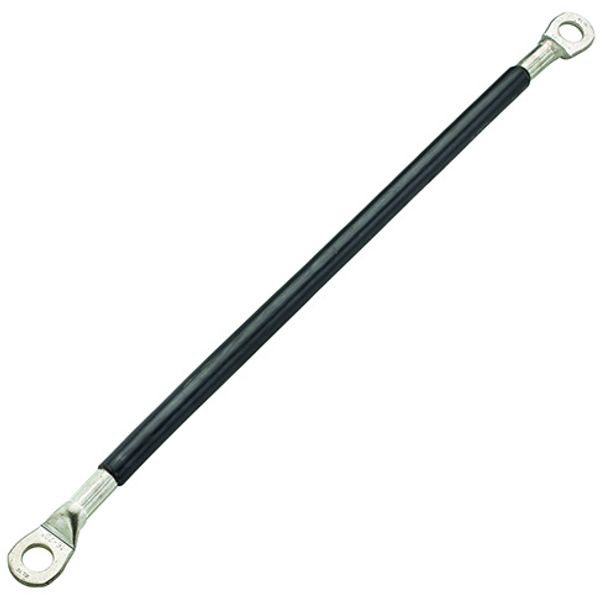

Steel rope earthing connector, cable lug on both ends D 17mm L 500mm

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

77,87 €

This price is valid until 31.12.25

EAN: 4013364439610

MPN: 419260

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Steel rope earthing connector, cable lug on both ends D 17mm L 500mm
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Connecting shaft	500 mm
Material connection lug	Other

Packing details

Packing level 1

4013364439610, 4013364439610

Downloads

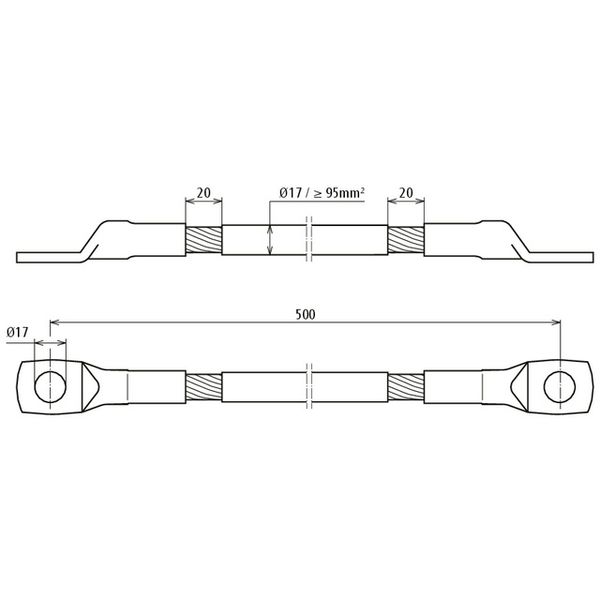

Product data sheet Dimensioned drawing

Description

Steel cable earthing connector according to the guideline of DB Netz AG Ril 997.0205A01, for earthing, current return circuits and equipotential bonding in railway line applications. Consisting of a two cable lugs with borehole (17 mm). The steel cable is a preventive anti-theft measure. Designed for short-circuit currents ≤ 25 kA.
