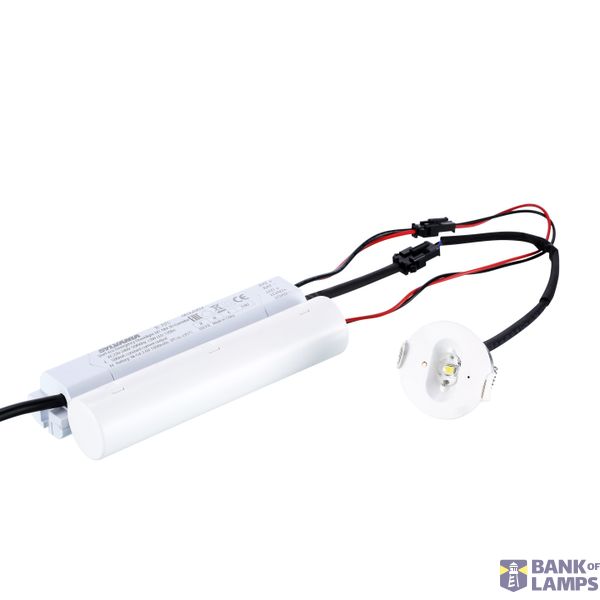

START eco Emergency Spot MT NM 3h Corridor
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | START eco Emergency Spot MT NM 3h Corridor |
| Brand | Sylvania |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001957 |
| Width | 45 mm |
| Length | 150 mm |
| Height/depth | 45 mm |
| Impact strength | IK02 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 5000 K |
| Max. system power | 1.3 W |
| Rated luminous flux according to IEC 62722-2-1 | 170 lm |
Packing details
| Packing level 1 | 5410288320038 |
Other Technical data
| Mounting method | Built-in |
| Protection class | II |
| Outer diameter | 0 mm |
| Conductor cross section | 0 mm² |
| Colour housing | White |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| Number of poles | 0 |
| Housing material | Plastic |
| Number of lighting heads | 0 |
| Built-in length | 0 mm |
| Material cover | Plastic, transparent |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 0 |
| Recognition distance | 0 m |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Rated life time L80/B10 at 25 °C | 17000 h |
| Luminous flux in standby mode | 0 lm |
| Rated ambient temperature according to IEC62722-2-1 | 0-35 °C |
| LED nominal current at constant current | 0 mA |
| Light distributor | None |
| Max. number of luminaires per miniature circuit breaker C16 | 125 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Built-in height/depth | 0 mm |
| Power factor | 0.4 |
Description
START eco Emergency Spot Manual Test Non Maintained 3h Corridor
Replaced by
Order only
38,76 €
EAN: 5410288320069
MPN: 32006
Package: 1
