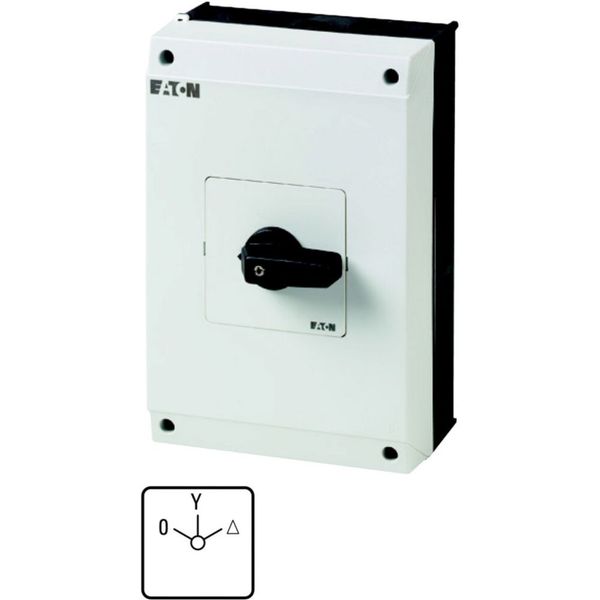

T5B-4-24/I4 Star-delta switches, T5B, 63 A, surface mounting, 4 contact unit(s), Contacts: 7, 60 °, maintained, With 0 (Off) position, 0-Y-D, SOND 27, Design numb
Order only
Price (excl. VAT):
139,03 €
EAN: 4015082225155
MPN: 222515
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | T5B-4-24/I4 Star-delta switches, T5B, 63 A, surface mounting, 4 contact unit(s), Contacts: 7, 60 °, maintained, With 0 (Off) position, 0-Y-D, SOND 27, Design numb |
| Brand | EATON |
| Categories |
Off-load Switches
|
| Country of origin | GB |
| Harmonized System Code | 8536 5080 00 |
| Model | Star-delta switch |
| Rated operation power at AC-3, 400 V | 37 kW |
| Rated permanent current Iu | 63 A |
| Number of poles | 3 |
| Rated operation current Ie at AC-3, 400 V | 41 A |
| With zero (off) position | Yes |
| Degree of protection (IP), front side | IP65 |
| Type of control element | Short thumb-grip |
Packing details
| Packing level 1 | 4015082225155 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Housing material | Plastic |
| With retraction in 0-position | No |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for floor mounting | Yes |
| Suitable for front mounting | No |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | No |
| Complete device in housing | Yes |
| Degree of protection (NEMA), front side | 12 |
Description
Star-delta switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Notes: SOND 27, Contacts: 7, Degree of Protection: IP65, Design: surface mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
