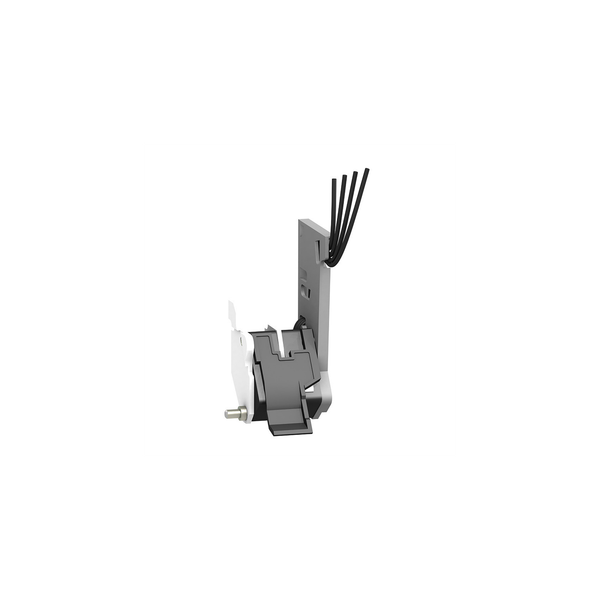

standard early make contact, ComPact NSX100 to NSX630, rotary handle position CAF, 2 changeover contact types image 1
MD01 image 2
standard early make contact, ComPact NSX100 to NSX630, rotary handle position CAF, 2 changeover contact types thumbnail 1
MD01 thumbnail 2
Schneider Electric

standard early make contact, ComPact NSX100 to NSX630, rotary handle position CAF, 2 changeover contact types

Order only
Price (excl. VAT):
50,47 €
This price is valid until 31.12.25
EAN: 3606480020445
MPN: LV429346
Package: 1
Box: 45
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name standard early make contact, ComPact NSX100 to NSX630, rotary handle position CAF, 2 changeover contact types
Brand Schneider Electric
Categories Signal & Control Modules
Country of origin FR
Mounting method Other
Model Integrable
Rated operation current Ie at AC-15, 230 V 4 A
Type of electric connection With cable preassembled
Number of contacts as normally closed contact 2
Number of contacts as normally open contact 2
Number of contacts as change-over contact 2

Packing details

Packing level 1 3606480020445
Packing level 2 3606480020443

Other Technical data

Number of fault-signal switches 0

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Technical manual

Description

It is a double early break contact that indicates the position of the rotary handle for Compact NSX 100 to 630 and PowerPact Multistandard H/J/L circuit breakers. An early make contact (CAM), in conjunction with a rotary handle, can be used to anticipate device closing. The contact fits into the rotary handle unit. These auxiliaries are 2 common point changeover type contacts with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. utilization categories are AC12/AC15/DC12/DC14. Compact NSX and PowerPact chassis can be equipped with 1 early break contact. It complies with IEC 60947-5-1 standard.
