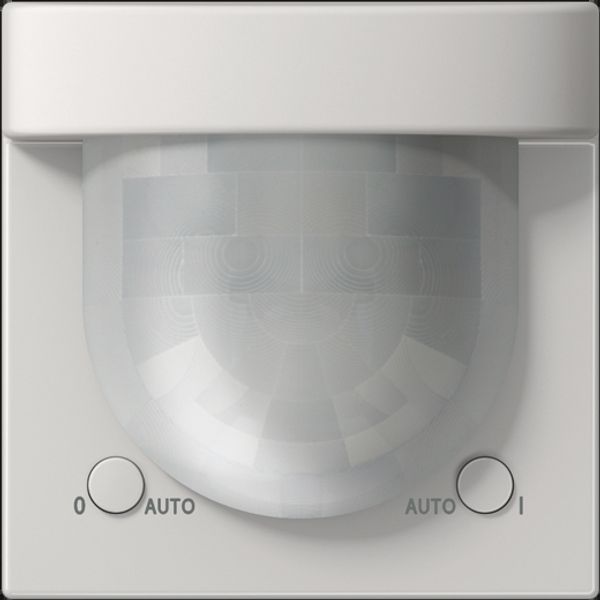

Standard automatic switch 2,20 m LS3281WWM
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
160,28 €
EAN: 4011377204584
MPN: LS3281WWM
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 2,20 m LS3281WWM |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377204584 |
| Packing level 2 | 4011377204584 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Standard automatic switch for motion detection and staircase monitoring.Designed for integration in KNX bus systems, flush-mounted with plaster installation.Facilitates efficient management of switching times and luminosity settings. Color white.Material plastic, lacquered surface protection with thermoplastic quality.Matt surface finishing.Movement sensor model designed for optimal operation at 1.1 m mounting height.Creep-under protection active, animal zone inactive, suitable for precise motion sensing applications requiring high reliability. Horizontal detection angle 0° - 180°.Vertical detection angle 0° - 80°.Front detection range max:8 m;sideways up to:6 m;diameter floor range:12 m ensures broad coverage area fitting extensive operational requirements.Min switch-on time 10 s adjustable response value luminosity supported + teach-function active ensuring self-adapting brightness measures suitability beyond standard installs (DLY monitored too cl of user balanced).Transmission present static smart span long adj assists combined relay final_kw via planner ops
