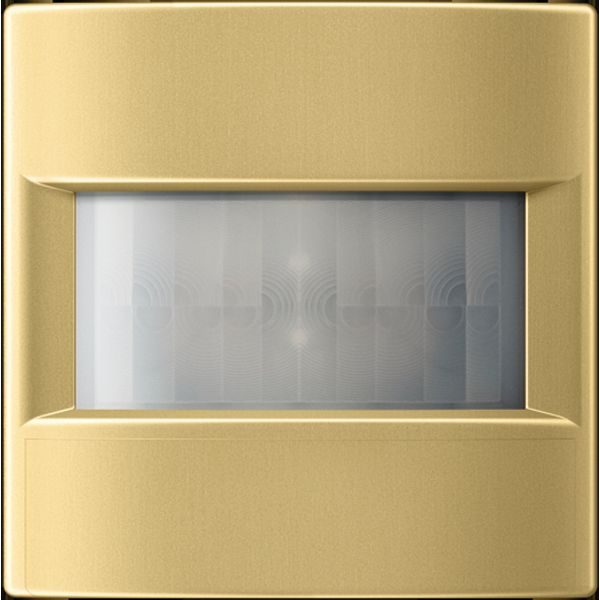

Standard automatic switch 2,20 m ME3281AT
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
183,49 €
EAN: 4011377155589
MPN: ME3281AT
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 2,20 m ME3281AT |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155589 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Brass |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 8014 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
The ME3281AT is a KNX-compatible automatic switch designed for motion sensing and light management systems.Used primarily in bus system devices, it monitors spaces efficiently with adjustable luminosity response values and self-learning switch-off delay functionality. Flush mounted (plaster).Built-in depth undefined.Brass color, lacquered plastic material – thermoplastic quality with matt finish resembling RAL 8014 shade code.Non-transparent housing setup with creep-under protection enabled.Optimum mounting height specified at 1.1 m.Staircase monitoring verified active;maximum transmission ranges:sideways 6 m, frontally 8 m;detection floor diameter maxes at 12 m.Adjustable horizontal detection angle boundaries span from 0° to 180°, while vertical spans from 0° to 80°.Min on-time enabled:> 10 s operation mode manually switchable capacity single-channel setup integrated direct within standard KNX protocol connection settings
