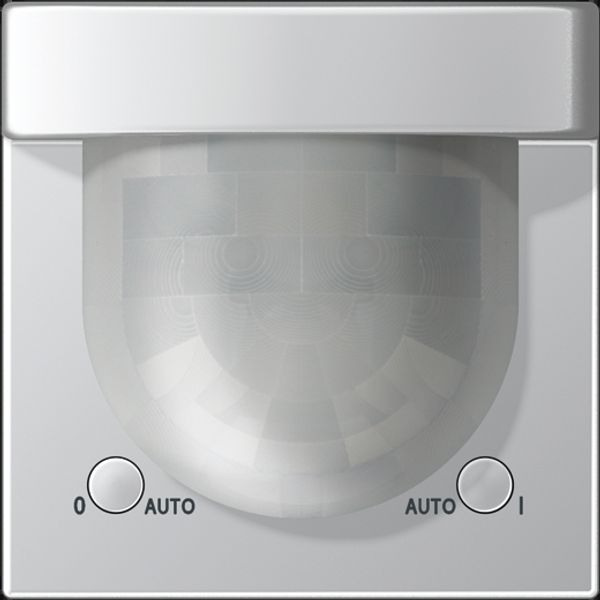

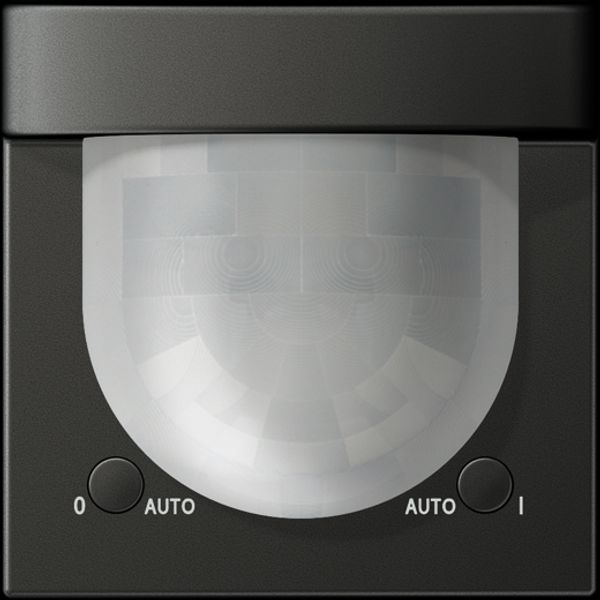

Standard automatic switch 2,20 m AL3281D
Order only
Price (excl. VAT):
167,53 €
EAN: 4011377155565
MPN: AL3281D
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 2,20 m AL3281D |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155565 |
| Packing level 2 | 4011377155565 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Aluminium |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Standard automatic switch designed for motion sensing applications, capable of controlling lighting or integrated systems with KNX bus connectivity.Facilitates energy efficiency through adjustable luminosity response and self-learning switch-off delay. Flush mounted (plaster).Aluminium lacquered finish.Material:thermoplastic, matt surface finishing.Movement sensor functionality with creep-under protection and staircase monitoring enabled.Optimum mounting height is 1.1 m.Max transmission range sideways 6 m, frontally 8 m;detection range floor diameter 12 m;horizontal detection angle spans from 0° to 180°, vertical from 0° to 80°.Response value luminosity adjustable with teach-function available for fine-tuning light conditions dynamically.Min switch-on time is set at 10 s consistently across operations;operates one channel exclusively under the KNX bus system framework without radio frequency features or other secondary bus connections
