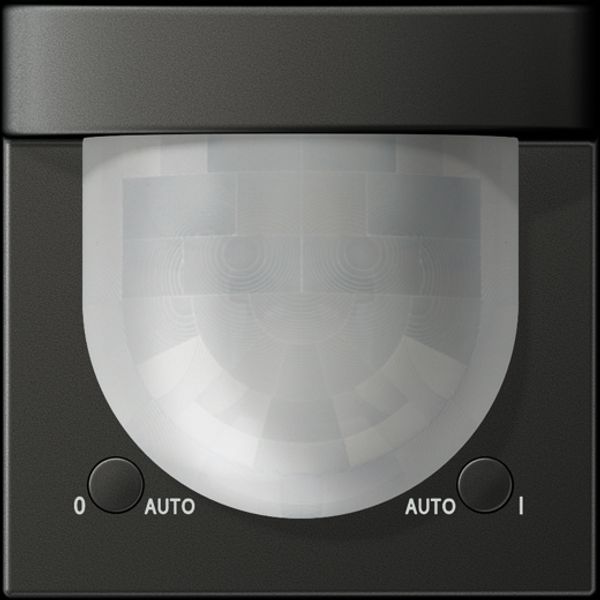

Standard automatic switch 2,20 m AL3281AN
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
164,14 €
EAN: 4011377155541
MPN: AL3281AN
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 2,20 m AL3281AN |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155541 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Anthracite |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Movement sensor integrated for automatic control in KNX bus systems.Optimized for staircase and hallway monitoring, detects motion frontally and sideways to actuate connected devices. Flush mounted installation suitable for plaster surfaces;anthracite thermoplastic housing, lacquered matte finish.Built-in minimum depth required:0 mm.Response value luminosity adjustable with teach-function enabled.Detection ranges:max 8 m frontal, max 6 m lateral;diameter detection range on floor up to 12 m.Horizontal detection angle spans between 0° to 180°, vertical angle between 0° to 80°.Creep-under protection active;animal zone functionality disabled.Switch-off delay self-learning operational alongside operation mode switch capability present.Optimum mounting height calculated at precisely "1.1" m from surface level for effective transmission sensing capabilities controlling one channel output via switching power interface—rated switching power documented as "0 W".
