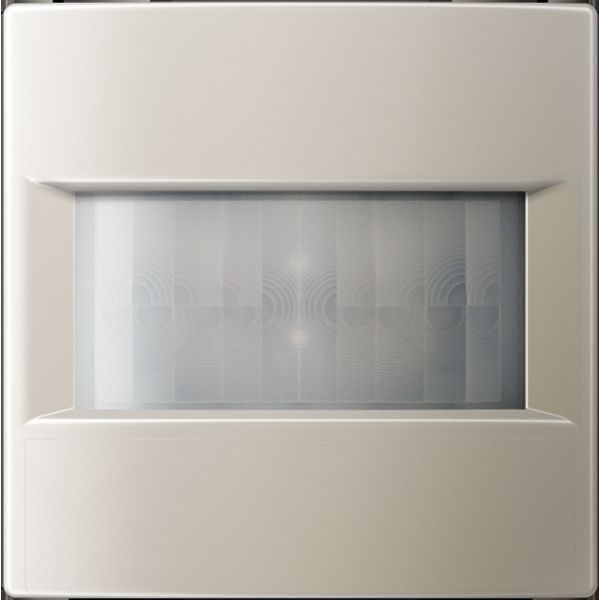

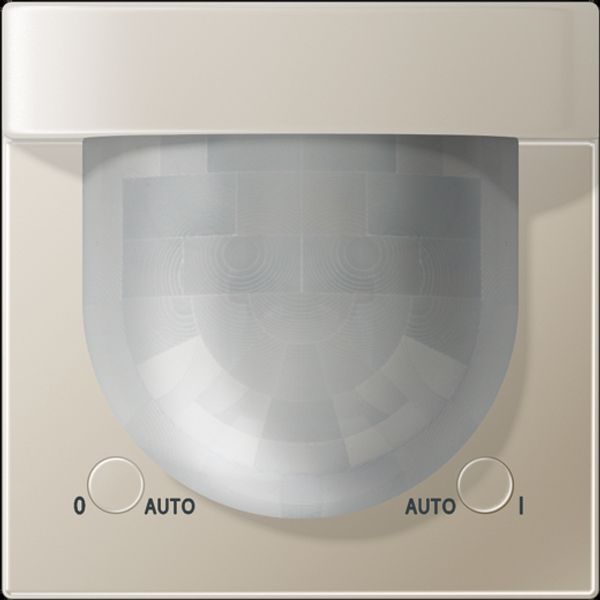

Standard automatic switch 2,20 m ES3281
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
160,28 €
EAN: 4011377155534
MPN: ES3281
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 2,20 m ES3281 |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155534 |
| Packing level 2 | 4011377155534 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Stainless steel |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
This device handles movement detection for automated switching in controlled systems, interfacing with KNX bus protocols.Primarily suited for spaces requiring front/side range activity sensing and luminosity-based activation control. Flush-mounted installation;plaster compatible.Stainless steel appearance, matt finish with lacquer coating applied to thermoplastic material.Optimum mounting height:1.1 m.Horizontal detection angle:0°–180°.Vertical detection angle:0°–80°.Diameter floor-detection capacity:12 m.Front max range:8 m;sideways range reaches up to 6 m. Switch-on time minimum set at 10 s yet supports self-learning switch-off delay logic plus adjustable brightness response threshold features, including teach-function integration options approved manually onsite adjustments within system monitoring efforts regarding staircase zones motion capture verification animal exclusion enabled creep zone active assistant coverage
