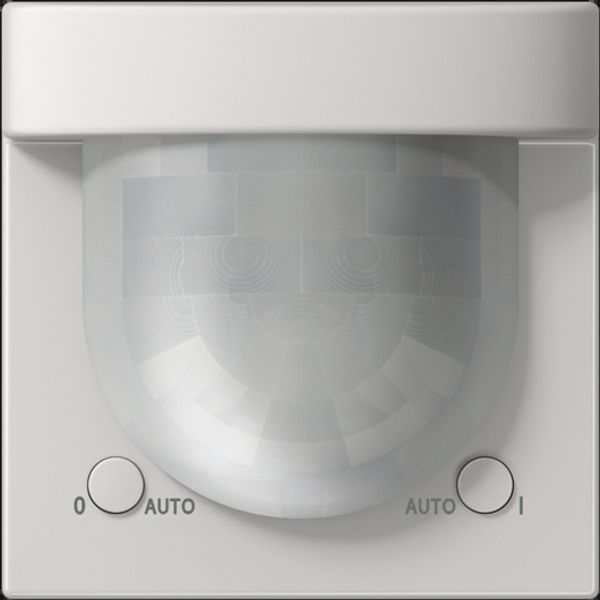

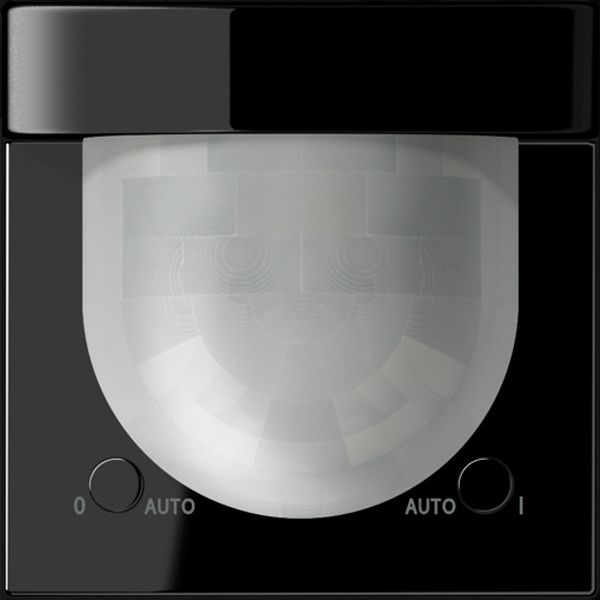

Standard automatic switch 2,20 m LS3281LG
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
152,83 €
EAN: 4011377155497
MPN: LS3281LG
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 2,20 m LS3281LG |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155497 |
| Packing level 2 | 4011377155497 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Grey |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 7035 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Standard automatic switch for motion detection and staircase monitoring.Integrated with KNX bus system, suitable for flush-mounted installation in plaster.Adjusts luminosity response values dynamically. Color:Grey, Material:Plastic (Thermoplastic), Surface Protection:Other, Surface Finishing:Glossy, RAL Approx.:7035.Model Type:Movement sensor.Creep-under protection enabled;includes staircase monitoring functionality.Optimal Mounting Height at 1.1 m vertical recommended.Maximum lateral transmission range is 6 m;forward range extends to 8 m—floor detection diameter reaches up to 12 m within a horizontal field of 180° and vertical field of 80°.Detection parameters include adjustable luminosity response value and teach-function capability.Minimum Switch-On Timer configurable at 10 s.Operation modes support self-learning switch-off delay functionality;manual operation mode switching available as well. Contains substation input logic processing & runs on single-channel configurations via KNX Bus exclusively (non-radio-enabled).Switching Power manages auxiliary circuits only (passive state power load functions required elsewhere).Designed for flush box depths from fully superficial mount installs (>0 mm minimum depth clearance mandates).Standard Box Item Compliance ID LS3281LG Series integration Logitech-Variant Response EULA Directive Perimeter onboard install setups >2.x PowerNet-Silent Base Sections
