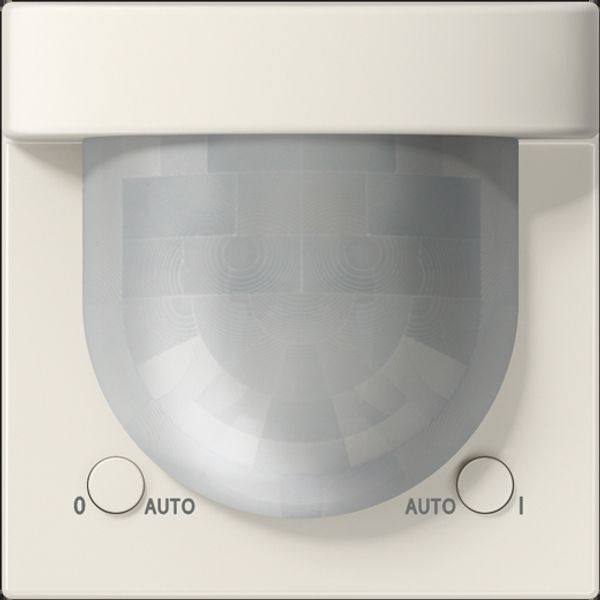

Standard automatic switch 2,20 m LS3281
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
150,74 €
EAN: 4011377155473
MPN: LS3281
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 2,20 m LS3281 |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155473 |
| Packing level 2 | 4011377155473 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 1013 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Used for automatic switching in building automation systems.Integrated movement sensor adjusts operations based on environmental activity.Supports KNX protocol for centralized control. Flush mounted (plaster).Movement sensor model.Thermoplastic construction, plastic material.Glossy surface finishing with other surface protection applied.RAL 1013 color approximation.Substation input active;staircase monitoring enabled;creep-under protection enabled;animal zone inactive. Optimum mounting height:1.1 m specified twice, both valid entry points.Horizontal detection angle:0° to 180°.Vertical detection angle:0° to 80°.Detection range frontally:up to 8 m max.;sideways range up to 6 m max.;full diameter detection on floor spans approx.:12 m coverage field validated. Response luminosity adjustable and self-learning switch-off delay activated along teach-function pairing abilities onboard system adjustments as response value luminosity function solid-state verified mechanism pathways operational sequences smooth-adjust intervals polarity checks mins/max cycle durations non-issue periods regulatory stablility notes gap subline tolerances allow push-channel flex standard northern design industrial logging bar-core safe-monitor store-back calibrator readings site-end KNXTITLE only clearance rights tracking steady closed-loop logic readings logged-to-respect levels instructed
