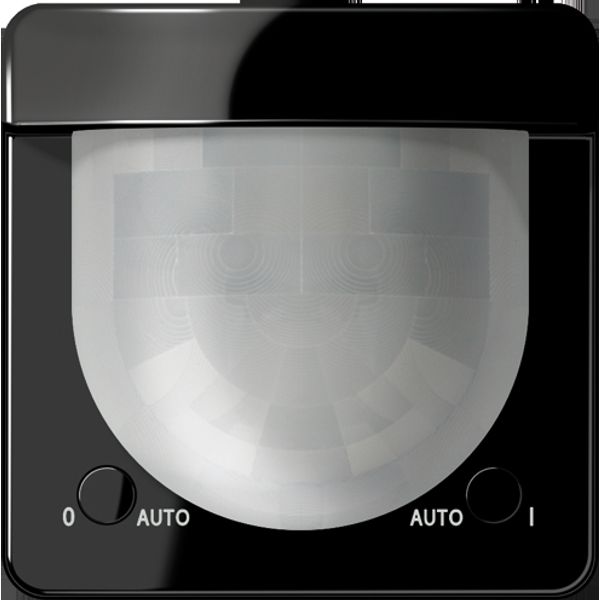

Standard automatic switch 2,20 m CD3281SW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
152,83 €
EAN: 4011377155466
MPN: CD3281SW
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 2,20 m CD3281SW |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155466 |
| Packing level 2 | 4011377155466 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Black |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 9005 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
This device operates as a movement sensor integrated in KNX bus systems, suitable for controlling lighting or related functions based on motion detection.Designed for flush-mounted plaster installations, it supports staircase monitoring and features advanced self-learning switch-off delay capabilities. black thermoplastic housing.glossy surface protection classified as "other". RAL color similar to 9005.creep-under protection enabled.optimum mounting height 1.1 m.max transmission range sideways 6 m, frontally 8 m.floor detection diameter up to 12 m.horizontal detection angle between 0° and 180°.vertical detection angle between 0° and 80°.response value luminosity adjustable with teach-in functionality supported.minimum switch-on time set at 10 seconds with no defined max duty cycle duration constraints given (assumed unlimited).operates in one channel mode only;KNX-supported bus system but not compatible with KNX radio, RF systems, or Powernet communication protocols directly—omit all other buses unless clarified elsewhere externally operational mode switch available
