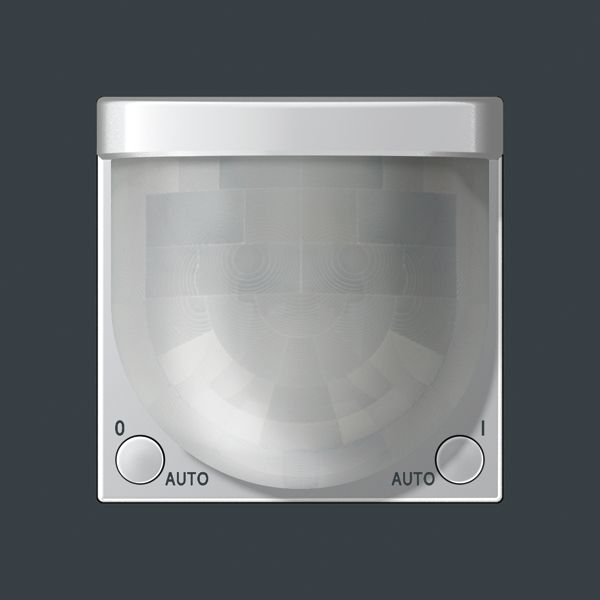

Standard automatic switch 2,20 m A3281AL
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
155,90 €
This price is valid until 31.12.25
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
Item condition |
New |
Manufacture name |
Standard automatic switch 2,20 m A3281AL |
Brand |
Jung
|
Categories |
Bus System Devices (KNX/Modbus)
|
Country of origin |
DE |
Harmonized System Code |
9031 8080 00
|
Model |
Movement sensor |
Bus system KNX |
Yes |
Bus system radio frequent |
No |
Bus system Powernet |
No |
With bus connection |
No |
Bus system LON |
No |
Bus system KNX radio |
No |
Radio frequent bidirectional |
No |
Packing details
Packing level 1 |
4011377155367 |
Packing level 2 |
4011377155367 |
Other Technical data
Mounting method |
Flush mounted (plaster) |
Colour |
Aluminium |
Surface protection |
Lacquered |
Creep-under protection |
Yes |
Number of channels |
1 |
Staircase monitoring |
Yes |
Material quality |
Thermoplastic |
Switching power |
0 W |
Max. transmission range frontally |
8 m |
Max. transmission range sideways |
6 m |
Material |
Plastic |
Diameter detection range on floor |
12 m |
Substation input |
Yes |
RAL-number (similar) |
0 |
Teach-function for response value luminosity |
Yes |
Operation mode switch |
Yes |
Transparent |
No |
Animal zone |
No |
Surface finishing |
Matt |
Detection angle vertical |
0-80 ° |
Detection angle horizontal |
0-180 ° |
Min. switch-on time |
10 s |
Max. duty cycle |
0 min |
Response value luminosity adjustable |
Yes |
Switch-off delay self-learning |
Yes |
Optimum mounting height |
1.1 m |
Min. depth of built-in installation box |
0 mm |
Downloads
Description
Movement sensor for automated control in KNX bus systems, designed for precise motion detection and energy-efficient switching tasks.Suitable for flush-mounted plaster installations in modern building environments. Aluminium-colored plastic housing, thermoplastic quality, lacquered matt surface finish.Horizontal detection angle range:0° to 180°.Vertical detection angle range:0° to 80°.Maximum transmission range frontally:8 m, sideways:6 m.Detection floor diameter:12 m at optimal mounting height of 1.1 m.Creep-under protection enabled;staircase monitoring active. Response luminosity adjustable with teach-function available;supports self-learning switch-off delay mechanism.Minimum switch-on time configuration at least 10 seconds.Bus system integration limited to KNX only (no radio or other powernet systems).One channel implementation with manual operation mode switch possible despite no bus connection support configuration showing alternate adaptability limits outside the area simpler default project choice relay high known-channel
