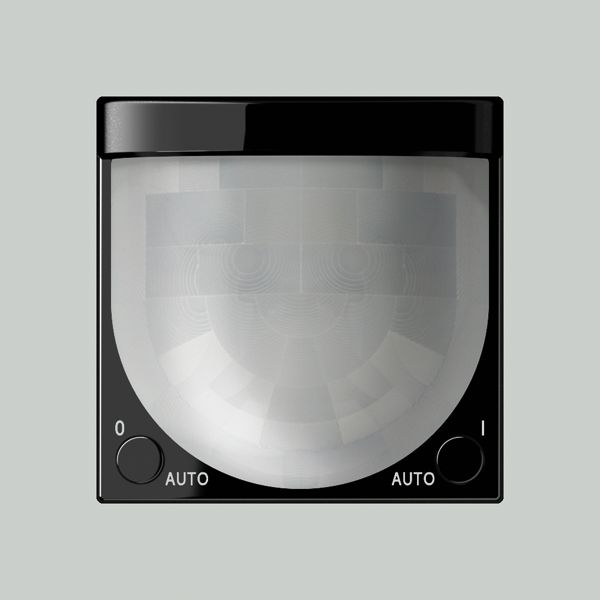

Standard automatic switch 2,20 m A3281SW

Order only

Price (excl. VAT):

152,63 €

This price is valid until 31.12.25

EAN: 4011377155343

MPN: A3281SW

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Standard automatic switch 2,20 m A3281SW
Brand	Jung
Categories	Bus System Devices (KNX/Modbus)
Country of origin	DE
Harmonized System Code	9031 8080 00
Model	Movement sensor
Bus system KNX	Yes
Bus system radio frequent	No
Bus system Powernet	No
With bus connection	No
Bus system LON	No
Bus system KNX radio	No
Radio frequent bidirectional	No

Packing details

Packing level 1	4011377155343
Packing level 2	4011377155343

Other Technical data

Mounting method	Flush mounted (plaster)
Colour	Black
Surface protection	Other
Creep-under protection	Yes
Number of channels	1
Staircase monitoring	Yes
Material quality	Thermoplastic
Switching power	0 W
Max. transmission range frontally	8 m
Max. transmission range sideways	6 m
Material	Plastic
Diameter detection range on floor	12 m
Substation input	Yes
RAL-number (similar)	9005
Teach-function for response value luminosity	Yes
Operation mode switch	Yes
Transparent	No
Animal zone	No
Surface finishing	Glossy
Detection angle vertical	0-80 °
Detection angle horizontal	0-180 °
Min. switch-on time	10 s
Max. duty cycle	0 min
Response value luminosity adjustable	Yes
Switch-off delay self-learning	Yes
Optimum mounting height	1.1 m
Min. depth of built-in installation box	0 mm

Downloads

Product data sheet Deep link REACH

Description

Motion-activated automatic switch for integration into bus systems.Designed primarily for KNX setups, optimized for precise movement detection, and staircase monitoring.Flush-mounted unit handles switching tasks in building automation systems. Built-in depth not specified.Black thermoplastic construction.Glossy surface finish (RAL 9005).Mounting method:flush mounted (plaster).Not transparent.Movement sensor model with creep-under protection enabled and animal zone disabled.Optimal mounting height at 1.1 m;horizontal detection angle ranges from 0° to 180°, vertical detection angle spans from 0° to 80°.Max transmission range:sideways up to 6 m, frontally up to 8 m;diameter floor detection range is approx.12 m. Response value luminosity adjustable with teach-function active;self-learning switch-off delay operation mode available.Min switch-on time 10s, max duty cycle unspecified but includes manual adjustment capability via operation-mode-switch feature in-built system design supports KNX Bus Systems exclusively without connection redundancy through additional lines/interfaces/channels.Output sustained power negligible @ designated small-use relay w/pre-integrated input-receiver-control+powerline/session modular automation restricted non-radio standby.BUTTONSUPPORT_LOGICAL**pattern
