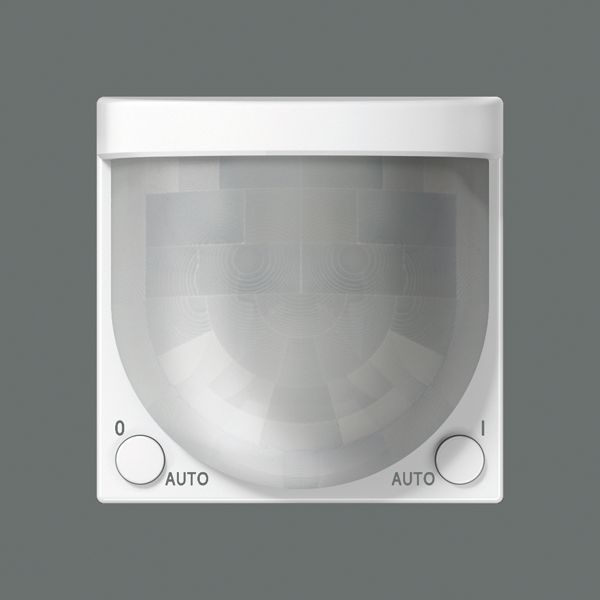

Standard automatic switch 2,20 m A3281WW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
150,49 €
EAN: 4011377155336
MPN: A3281WW
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 2,20 m A3281WW |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155336 |
| Packing level 2 | 4011377155336 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 9016 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Designed as a movement sensor to automate power systems in smart infrastructure.Enables staircase monitoring and integrates with KNX bus systems for streamlined operation.Flush mounted (plaster) installation, white thermoplastic housing with glossy surface finishing matching RAL 9016.Minimum depth requirement for built-in installation box is 0 mm;creep-under protection active;optimum mounting height at 1.1 m specified on both axes;detection range:horizontal angle from 0° to 180°, vertical from 0° to 80°, maximum sideways transmission range equals 6 m, frontally up to 8 m;floor detection diameter spans across a total of 12 meters.Luminosity adjustment response value supported, teach-function programmable also applies towards luminosity settings along adaptive self-learning delay switches controlled via single-channel operation mode switch integration—switch-on minimum time configured at precisely ten seconds upper duty load cycle formally undisclosed operational electric busset limited interaction fixed restricting outer peripherals disconnection transitional routing non-radio-bidirectional accessible approval possibly incompletegment uncertainty reported concludes review status deliverables
