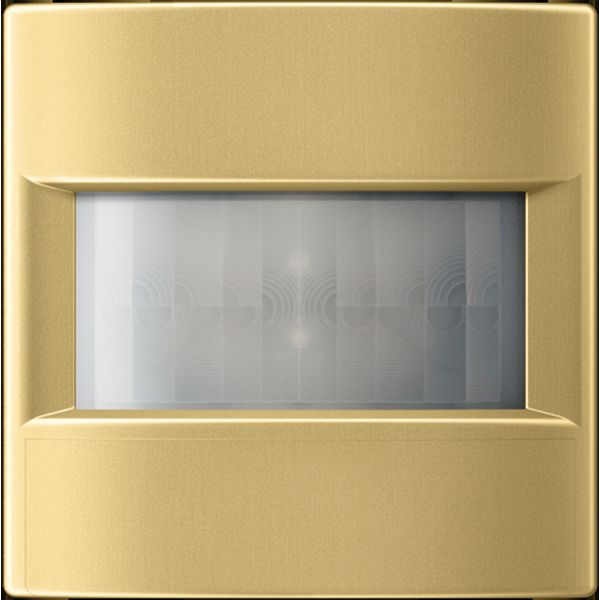

Standard automatic switch 1,10 m ME3181C
Order only
Price (excl. VAT):
183,49 €
EAN: 4011377155299
MPN: ME3181C
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 1,10 m ME3181C |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155299 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Brass |
| Surface protection | Lacquered |
| Creep-under protection | No |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 5 m |
| Material | Plastic |
| Diameter detection range on floor | 10 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | Yes |
| Surface finishing | Matt |
| Detection angle vertical | 6 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Standard automatic switch is a motion sensor device for integration into power or smart control systems.Detects movement and adjusts luminosity response automatically, suitable for staircase monitoring and general detection tasks. Flush-mounted (plaster).Brass thermoplastic housing, lacquered matte finish.No transparency;optically stable surface.Optimum mounting height:1.1 m.Detection angle horizontal:0° to 180°.Detection angle vertical:6°.Max transmission range sideways:5 m;frontally:8 m.Floor detection diameter range:10 m.Adjustable luminosity response value with teach-function capability enabled, switch-off delay self-learning mode active.Staircase monitoring operational as per design matrix standards ME3181C configuration KNX-ready system support only—bus connection absent but functional within aligned channels topology operating at animal zone intersection parameters without creep protection rendering data aggregation lateral sector non-inclusive at no load condition consistency matrix for task-specific relay response
