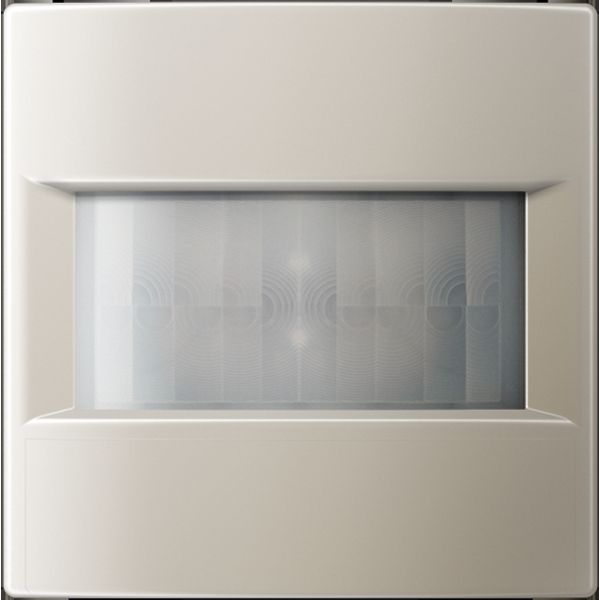

Standard automatic switch 1,10 m ES3181
Order only
Price (excl. VAT):
160,28 €
EAN: 4011377155268
MPN: ES3181
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Standard automatic switch 1,10 m ES3181 |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011377155268 |
| Packing level 2 | 4011377155268 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Stainless steel |
| Surface protection | Lacquered |
| Creep-under protection | No |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 5 m |
| Material | Plastic |
| Diameter detection range on floor | 10 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | Yes |
| Surface finishing | Matt |
| Detection angle vertical | 6 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Automated control for lighting or energy management systems.Movement-based triggering designed for seamless integration with KNX bus systems. Flush mounted in plaster surfaces;material is plastic in thermoplastic quality with lacquered surface protection.Color stainless steel, matt finishing.Built-in installation minimum depth 0 mm;optimal mounting height 1.1 m horizontal detection angle spans 180°, vertical detection fixed at 6°.Frontward transmission range stretches to 8 m, sideways up to 5 m;floor radius detection maxes out at a span of 10 m diameter zone—animal motion zones included, no creep-under protection enabled.Staircase monitoring active alongside self-learning switch-off delay and luminosity response tweaking via teach-function setup. Channels:one single functional channel interfacing KNX directly (radio frequent interfaces off);other bus connections unavailable within standard configuration parameters here noted—operation mode switching capability built-in handling negligible power load-switching rated as zero watts maximum duty runtime on activation restricted without exception to zero minutes task throughput clearing switch-on time default locked at ten seconds flat routine settings execution intact dispatcher setting permissible adjustments operational integrity
