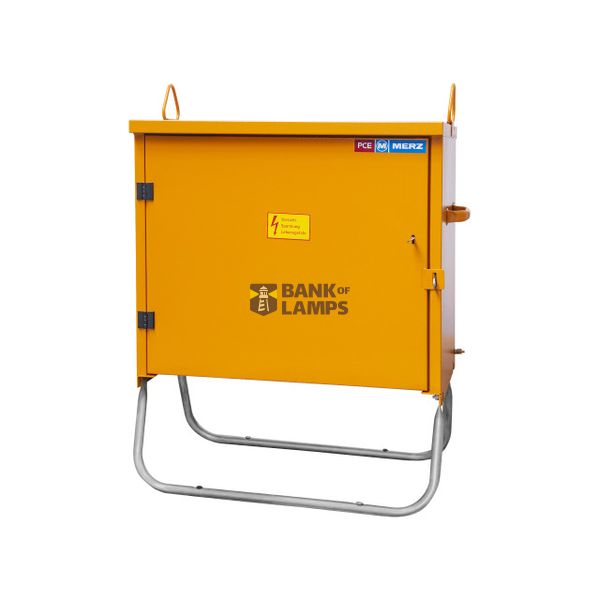

Stand for construction power distributer (Zwerg)

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Stand for construction power distributer (Zwerg)
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000484
Model	Distributor cabinet
Rated current	63 A
Rated voltage	230/400 V

Packing details

Packing level 1

9003399209284

Other Technical data

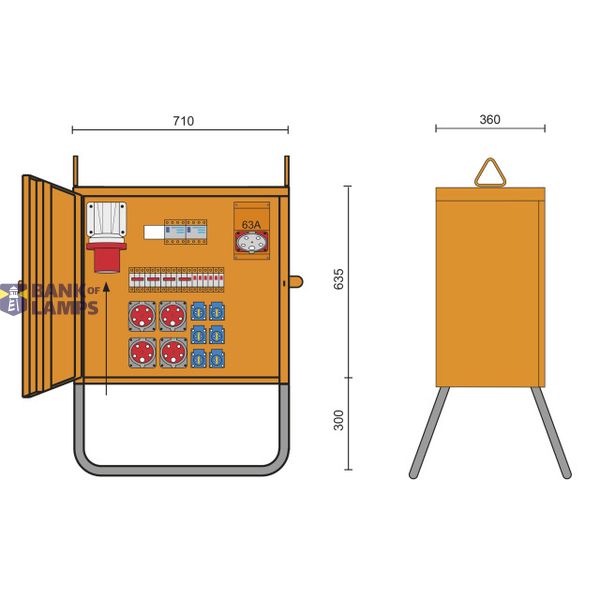

Width	710 mm
Height	935 mm
Depth	360 mm
Main switch	None
Number of CEE socket outlets 16 A / 400 V / 5P	2
Number of CEE socket outlets 32 A / 400 V / 5P	2
Number of CEE socket outlets 63 A / 400 V / 5P	1
Number of socket outlets with protective contact (type F)	6
Connected load	44 kVA
Housing material	Sheet steel
Leakage current type	Other
Degree of protection (IP)	IP44
Number of earth leakage switches 30 mA	2
Number of miniature circuit breakers	10

Downloads

Product data sheet

Description

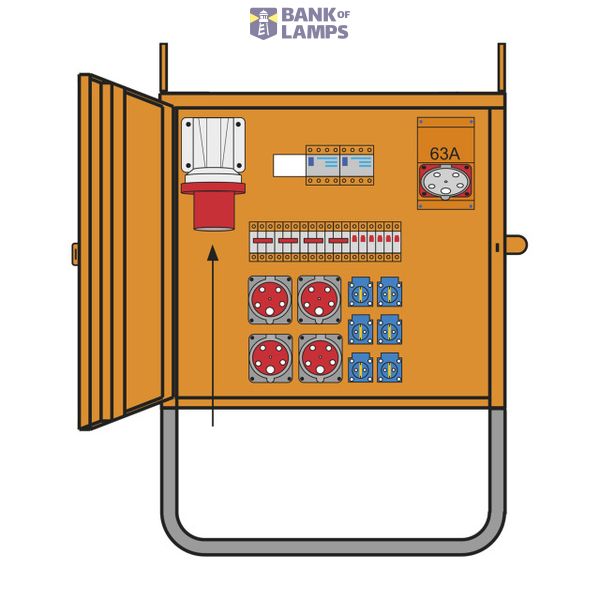

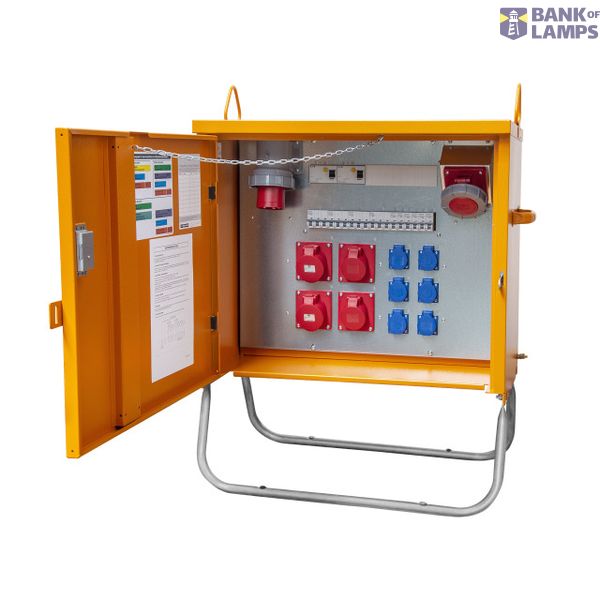

Endverteilerschrank EV 44 kVA nach ÖVE EN 61439/4
Versorgungsgebiet: ganz Österreich
RAL 2000 / 50kg / 710x935x360mm (BxHxT) m. Untergest. 300mm
1xCEE-Gerätestecker 63A 5p 400V
1xCEE-Steckdose 63A 5p 400V durchgeschliffen
2xCEE-Steckdose 32A 5p 400V abgesichert ü. 2xLS 32A 3p C
2xCEE-Steckdose 16A 5p 400V abgesichert ü. 2xLS 16A 3p C
6xSK-Steckdose 16A 250V IP54 abgesichert ü. 6xLS 16A 1p C
1xFI 63A/4/0.03A therm. fest für CEE-Steckdosen 32A- u. 16A
1xFI 40A/4/0.03A therm. fest für Schutzkontakt-Steckdosen
