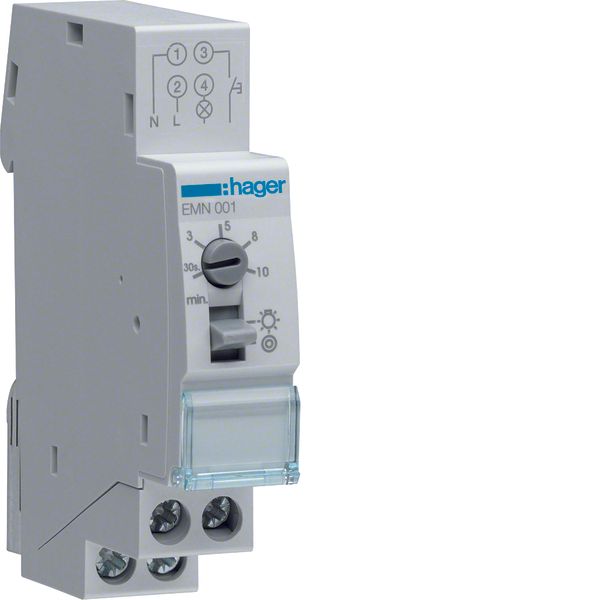

Stair case time lag switch
In stock
Price (excl. VAT):
48,599 €
per pcs
EAN: 3250612339969
MPN: EMN001
Package: 1
Box: 6
Pallet: 3456
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Stair case time lag switch |
| Brand | Hager |
| Categories |
Marking Plates and Enclosures
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9107 0000 00 |
| Mounting method | DIN rail |
| Function | Electronic |
| Release-delay | 0.5-10 min |
| Control voltage 1 | 230 V |
| Control voltage 2 | 230 V |
| Type of control voltage 1 | AC |
| Type of control voltage 2 | AC |
| Frequency control voltage 1 | 50-60 Hz |
| Frequency control voltage 2 | 50-60 Hz |
| Wiring system | 3 and 4 wire configuration |
| Pre-warning of switching-off | None |
| Repetitive | Repetitive |
| Voltage type of supply voltage | AC |
| Supply voltage | 230 V |
| Max. incandescent lamp load | 2300 W |
| Max. load fluorescent lamp | 3600 VA |
| Rated switch current | 16 A |
| Current surge function selectable | No |
Packing details
| Packing level 1 | 3250612339969 |
| Packing level 2 | 3250612339969 |
| Packing level 3 | 3250612339969 |
| Packing level 4 | 3250612339969 |
Other Technical data
| Built-in depth | 64 mm |
| Width in number of modular spacings | 1 |
| Max. switching current (cos phi = 0.6) | 16 A |
| Max. load fluorescent lamp (Duo circuit) | 1000 VA |
| Max. load fluorescent lamp (parallel compensated) | 1000 VA |
| Push button glow-lamp current | 100 mA |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
Description
3250612339969 is a digital temperature sensor designed for precise thermal monitoring in embedded systems and industrial applications. Its core function is to measure temperature within a predefined range and output data via an I2C interface, providing real-time readings for system control or diagnostics.
### Electrical Specifications
Operating Voltage: 3.0V–5.5V DC. Current consumption: Low-power mode averages <1 mA; active measurement typically around 10 mA draw depending on configuration. Communication protocol standard: I2C-compatible (supports both 100kHz and 400kHz modes). Pinout includes VCC, GND, SCL, SDA — no additional analog outputs provided.
### Measurement Parameters
Temperature accuracy listed at ±0.2 °C in the -10°C to +85°C range; outside this region accuracy drops slightly (see datasheet). Operating tolerance from -40°C to +125°C confirmed during lab testing under controlled conditions — may vary with sustained exposures at extreme boundaries. Resolution fixed at 0.0625 °C per output increment due to the onboard ADC design (12-bit), no adjustable resolutions available.
- Device calibrated before shipment but may require revalidation after prolonged storage periods.
- Requires pull-up resistors for SCL/SDA lines on most host systems.
- Not suitable for rapid response thermal applications (<250 ms intervals).
- I2C bus collisions possible in congested environments; avoid placing multiple sensors without addressing configurations.
